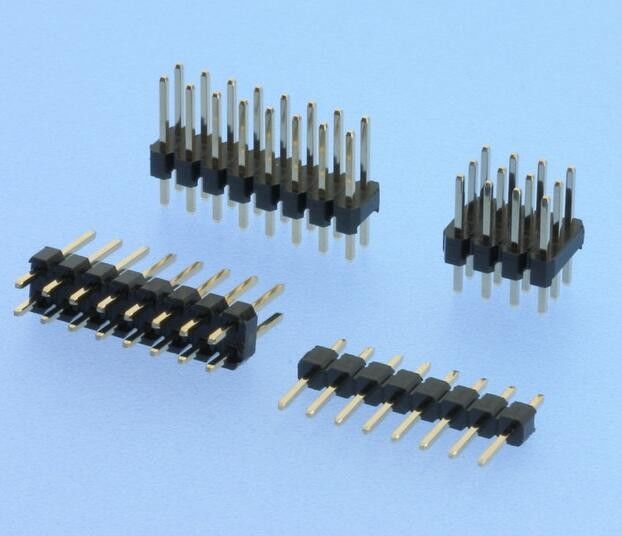

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2547H25-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm No.of Poles: 2-50
Type Of Row: 1/2/3 Housing Color: Black
PCB Mounting Orientation: Staright Connector System: Board-to-Board

PCB male Pin Headers, 2.54mm Pitch, Straight, 1/2/3 Rows , gold plated , Height of 2.5mm



Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf



Specification Standardized:





Pitch

2.54mm

Poles

2-50

Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

PCB Male Pin Header Connector 2.54mm Pitch Straight 1 / 2 / 3 Rows Gold Plated

Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
