Dual Row 2.0mm Pitch Female Wire To Board Power Connectors For PCB 250V

Dual Row 2.0mm Pitch Female Wire To Board Power Connectors For PCB 250V

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2041HNO-20

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm Wire Applicable: AWG 28 - 32#
Brand: JST Voltage Rating: 250V
Application: PCB Gender: Female

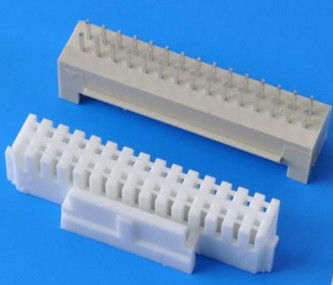

Dual row 2.0mm pitch housing +header +terminal Kit wire to board connector ,available in 2-40 Pin ,Nylon 66 UL 94V-0





Specification Standardized:





contact space

2.0mm

poles

  2-40

Applicable wire

AWG#28 - 32

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Voltage Withstand

800V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Technical Datasheet:



Dual Row 2.0mm Pitch Female Wire To Board Power Connectors For PCB 250V



Dual Row 2.0mm Pitch Female Wire To Board Power Connectors For PCB 250V



Dual Row 2.0mm Pitch Female Wire To Board Power Connectors For PCB 250V





Material Specification :



Terminal:

      Phosphor Bronze ,Gold plated

Housing:

Nylon66 UL94V-0

Wafer:

Nylon 66 UL94V-0

PIN:

Brass,Gold plated





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

Service

Country of Origin

Experienced Staff

Guarantee/Warranty

International Approvals

Price

Prompt Delivery

Quality Approvals



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
