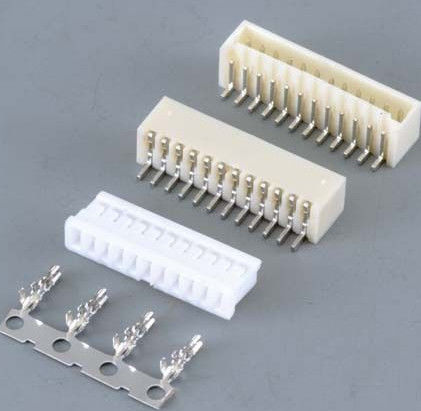

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Product Details:

Place of Origin:	China
Brand Name:	JVT
Certification:	ISO9001/SGS/UL/ROHS/Reach
Model Number:	JVT1502H/JVT1502T/JVT1502W

Payment & Shipping Terms:

Minimum Order Quantity:	5000 PCS
Price:	Negotiation
Packaging Details:	PE bag packing +outer carton
Delivery Time:	7-10 working days
Payment Terms:	T/T or Western Union
Supply Ability:	300000 per month

Contact Now

Detailed Product Description

Material:

Nylon66 UL94V-0

Pitch:

1.5mm

Equivalent:

Molex87439

Poles:

2-15

Highlight:

connector wire to board

,

wire to board crimp style connectors

Equivalent of Molex 87439 1.5mm connector, SMT, Right Angle and Vertical Type

Cross Part number list.pdf

2016 JVT catalogue.pdf

Technical Datasheet:

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Equivalent Of Molex 87439 1.5mm Pitch Connector SMT Right Angle / Vertical Type

Standardized Specification:

Pitch	1.5mm
No.of contact	2-15
Equivalent	Molex87439
Rating Voltage	350V AC/DC
Rating Current	3A AC/DC
Voltage Withstand	500V AC/minute
Operating temperature	-40°C to +105°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Competitive Advantages:

We are connectors manufacturer with over 15 years experience.

1. Complete Product range.

2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.

3. Close to Shenzhen Port.

4. Punctual & Short lead time.

5. Good quality & Competitive Price.

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
America
Europe

Tag:

connector wire to board,

wire to board crimp style connectors
