2.0mm Pitch Brass Straight Female Pin Connector Contact Resistance 20MΩ Max

2.0mm Pitch Brass Straight Female Pin Connector Contact Resistance 20MΩ Max

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2051H43 -10

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Color: Black Pitch: 2.0mm
Type Of Degree: Straight Contact Material: Brass
Contact Plating: Gold Or Tin Over 50μ '' Ni Nsulator Material: Polyester(UL94V-0)
Contact Resistance: 30MΩ Max Insulation Resistance: 1000MΩ Min

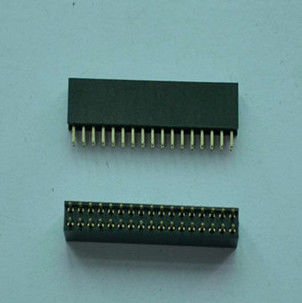

Brass Straight Female Header Connector Dual Row with Surface Mount Technology Type



2.0mm Straight Female Header Connector Dual Row with SMT Type



2.0mm single/double row Female Header,Straight DIP/SMT type





Specification Standardized:



Scale

2.0mm

Cables

2-50

Applicable wire

AWG#22-28

Rating Voltage

500V AC/DC

Rating Current

2A AC/DC

Voltage Withstand

500V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.



2.0mm Pitch Brass Straight Female Pin Connector Contact Resistance 20MΩ Max



Material Specification :



Housing: PA6T ,UL 94V-0



PIN: Brass ,Gold plated
