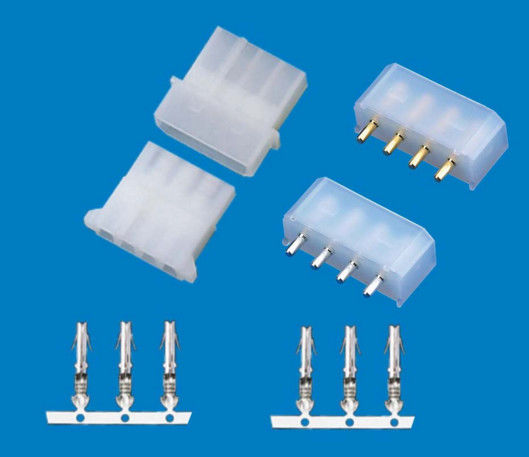

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

Product Details:

Place of Origin:	China
Brand Name:	JVT
Certification:	ISO9001/SGS/UL/ROHS/Reach
Model Number:	JVT1114

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	Negotiation
Packaging Details:	PE bag packing +outer carton
Delivery Time:	7-10 working days
Payment Terms:	T/T or Western Union
Supply Ability:	300000 per month

Contact Now

Detailed Product Description

Type:

Big 4p

Pitch:

5.08mm

Rating Current:

7A AC / DC

Contact Material:

Brass

Highlight:

power supply cable connectors

,

power supply connectors

SGS / UL / ROHS 5.08mm Big 4P Power Cable Connectors for Signal 7A AC / DC

5.08mm Big 4P for Power Cable Connectors Application Signal 7A AC / DC

Technical Datasheets

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

SGS / UL / ROHS 5.08mm Big 4P Power Supply Cable Connectors for Signal 7A AC / DC

Specification Standardized:

Scale	5.08mm
Cables	4
Applicable wire	AWG#22-28
Rating Voltage	250V AC/DC
Rating Current	7A AC/DC
Voltage Withstand	1500V AC/minute
Operating temperature	-25°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	10MΩ Max.

Material Specification :

Terminal:	Brass or Phosphor bronze,Tin/Gold Plated
Housing:	PA66,UL94V-2
Wafer:	Brass ,Nylon 66 UL94V-2
PIN:	Brass ,Tin plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

Tag:

power supply cable connectors,

power supply connectors
