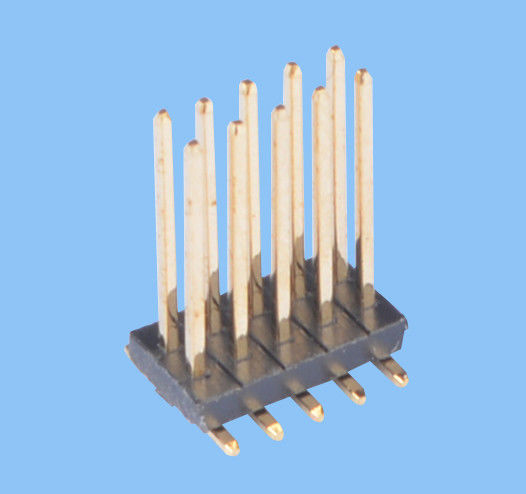

SMT Type Male Dual Row 2 X 5 Pin Connector 2.54mm Pitch PA6T Material Black Housing

SMT Type Male Dual Row 2 X 5 Pin Connector 2.54mm Pitch PA6T Material Black Housing

SMT Type Male Dual Row 2 X 5 Pin Connector 2.54mm Pitch PA6T Material Black Housing

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2547H25-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm No.of Poles: 2*10
Type Of Row: 2 Housing Color: Black
PCB Mounting Orientation: Staright Connector System: Board-to-Board

SMT type male pin header connector 2.54mm pitch ,daul row ,2X5pin PA6T material ,gold selective



2.54mm dual row female SMT socket
Features :
1.Available in 4 through 80circuits
2.Mates with 2.54mm pitch and 0.64mm pin header
3.Low profile 3.71mm and high density PCB socket
4.High quality dual beam phosphor bronze contacts
5.Designed for low pofile board to board interconnection
6.For other options consult the sales office



Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf



Specification Standardized:





Pitch

2.54mm

Poles

2*10

Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America
