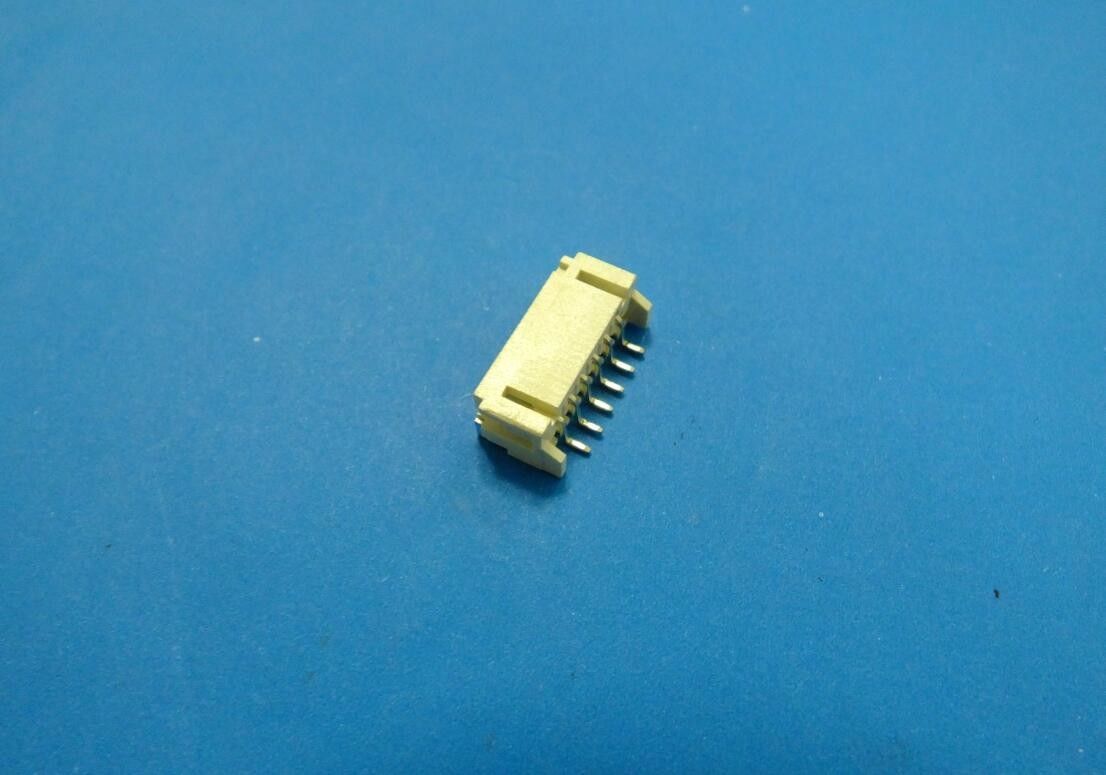

6 Poles SMT Side Entry 2.0mm Pitch PCB Header Connector Single Row Header Yellow

6 Poles SMT Side Entry 2.0mm Pitch PCB Header Connector Single Row Header Yellow

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1125W4T-06SNR-S

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm Color: White And Yellow
Rating Current: 3A AC/DC No.of Pins: 6

 6poles SMT 2.0mm Pitch side entry header connector , PA4T materail ,single row



Datasheet (PDF) & Other Documents Download center:

1PCB SMT header connector.pdf

2.Cross Part number list.pdf

Specification Standardized:





Pitch

2.0mm



Poles

2-16



Rating Voltage

200V AC/DC



Rating Current

3A AC/DC



Withstand voltage

1000V AC/minute



Operating temperature

-40°C to +85°C



Insulation resistance

1000MΩ Min



Contact resistance

20MΩ Max.





JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
