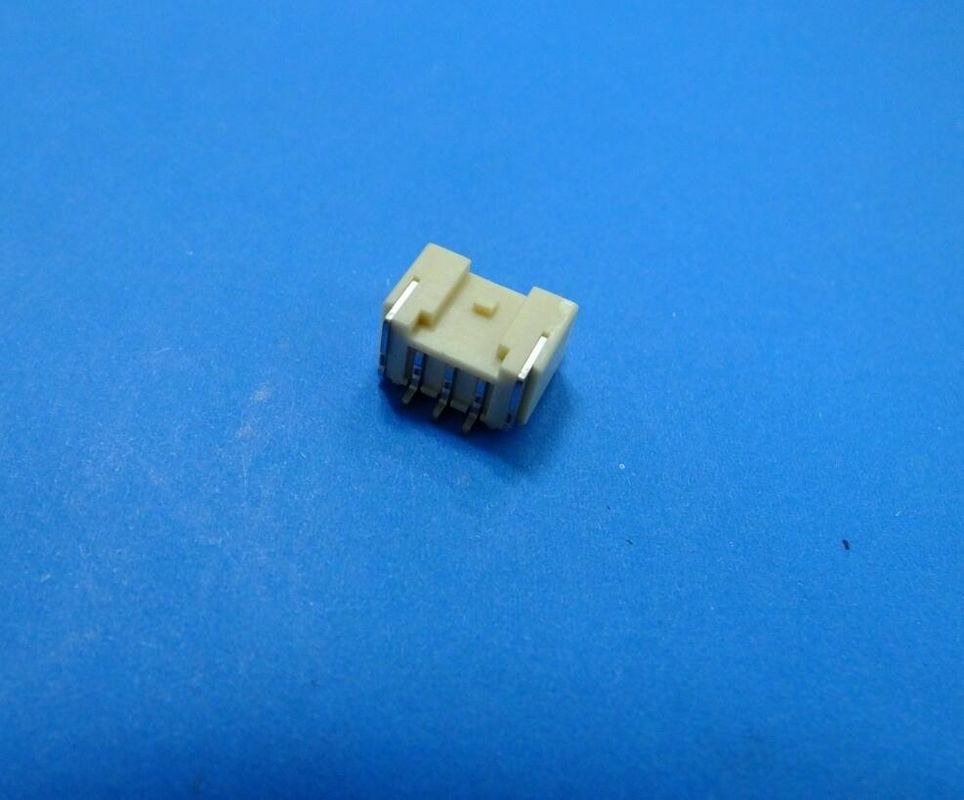

2.0mm 3 Poles PCB SMT Header Connector Side Entry / Single Row Type PA4T Material

2.0mm 3 Poles PCB SMT Header Connector Side Entry / Single Row Type PA4T Material

2.0mm 3 Poles PCB SMT Header Connector Side Entry / Single Row Type PA4T Material

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2032WLP-03SNR-S

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Wafer Type Of Row: Single Row
Type: SMT Number Of PIns: 6

2.0mm 3 Poles SMT PCB header Connector Side Entry / Single Row Type  male header ,PA4T Material,1000pcs tape&reel packaging ​



Datasheet (PDF) & Other Documents Download center:

1.JVT2032W9T-XXSNR-S.pdf

2.PCB SMT header connector.pdf

3.2016 JVT catalogue.pdf



Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: PA4T UL94V-0

PIN: Brass ,Tin plated



Standard Specification:



Pitch

2.0mm

Contacts

3

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .
