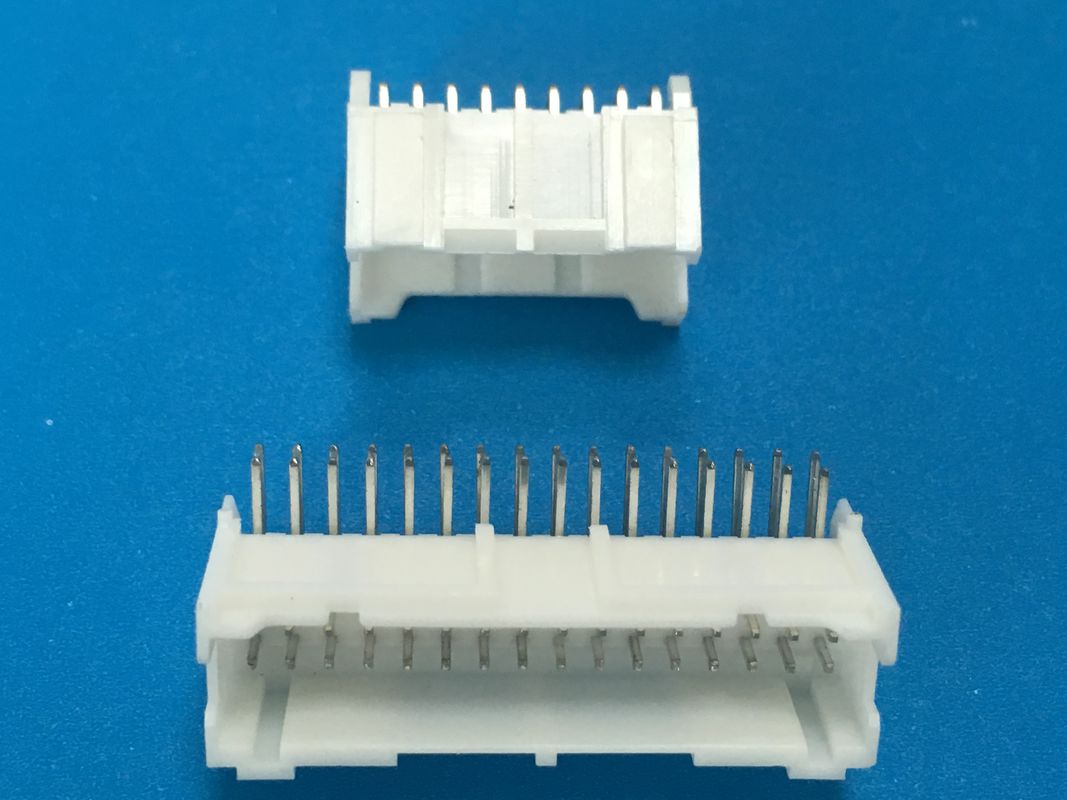

2.0 Mm Straight Pcb Header Connector For Nylon 66 UL94V-0 Dual Row Through Hole

2.0 Mm Straight Pcb Header Connector For Nylon 66 UL94V-0 Dual Row Through Hole

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2038WNO-2X9

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm Color: Black
Rating Current: 3A AC/DC No.of Pins: 10
Product Category: Headers & Wire Housings Mounting Style: Through Hole

2.0 mm straight header Connector for Nylon 66 UL94V-0,dual row Through Hole header ,18 poles



Datasheet (PDF) & Other Documents Download center:

1.JVT2038WN0-10SNWHR.pdf

2.2016 JVT catalogue.pdf

3. PCB SMT header connector.pdf



Product Profile
Series PAD connector
Category Wire to Board Crimp style Connectors
Type Disconnectable type
Crimp style, Double-row, With secure locking device
Feature With secure locking device



Specification
Pitch 2.0 mm
Current rating 3A (AWG#22)
Voltage rating 250V
PC board
mounting direction




2.0mm pitch double-row connector with secure locking device
*Secure locking device
The housing has a locking device to securely hold the header, preventing accidental disconnection because of external forces that might result from the routing of wires during assembly process oe of vibration.



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .
