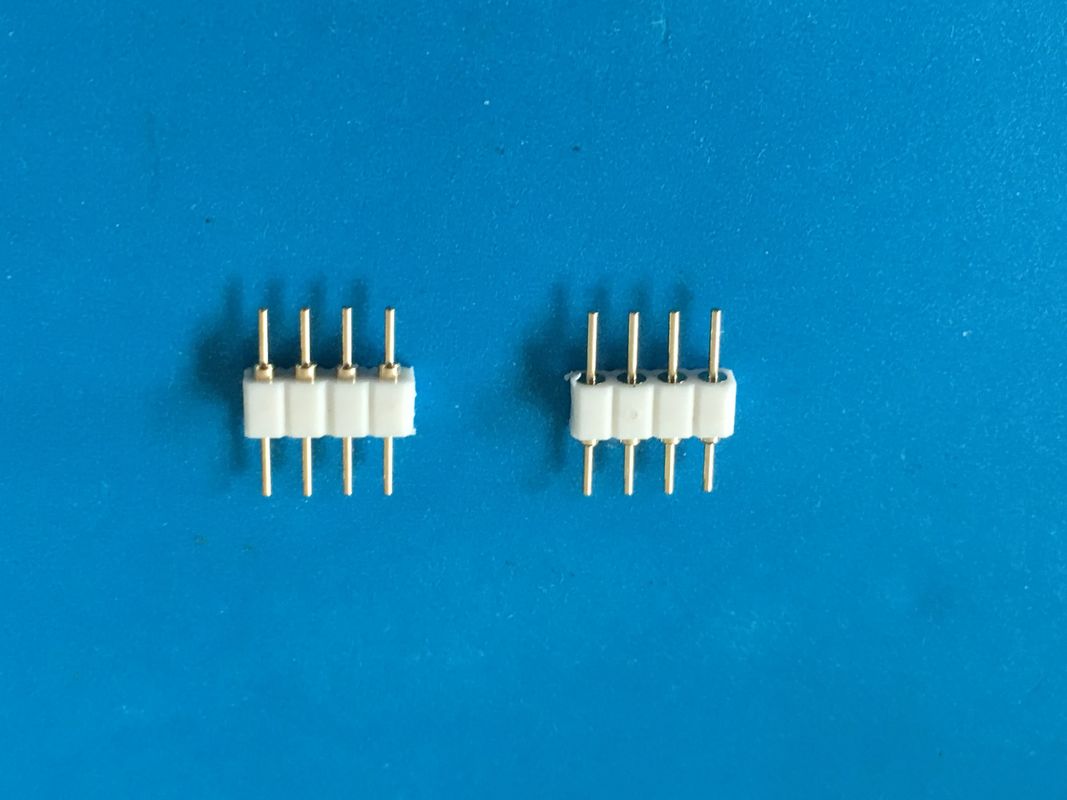

2.0mm Pitch 4 Pin Round Pin Header Connector Single Row Through Hole White Color

2.0mm Pitch 4 Pin Round Pin Header Connector Single Row Through Hole White Color

2.0mm Pitch 4 Pin Round Pin Header Connector Single Row Through Hole White Color

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2052H28-04-RH-U36D36

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm No.of Poles: 4
Type Of Row: 1 Housing Color: White
PCB Mounting Orientation: Staright Connector System: Board-to-Board,board To PCB

JVT New part 2.0mm pitch 4pin round pin header connector ,single row , through hole ,white color



Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf



Specification Standardized:





Pitch

2.0mm

Poles

4





Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.



2.0mm Pitch 4 Pin Round Pin Header Connector Single Row Through Hole White Color
