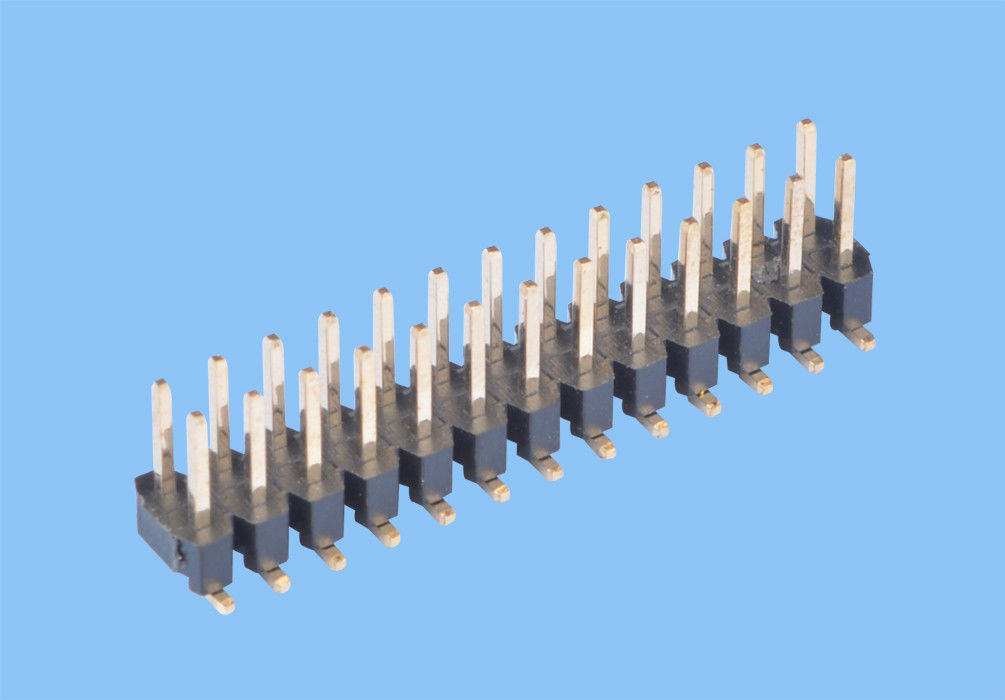

Black Housing 20 Pin Header Through Hole Straight Surface Mount Header Male

Black Housing 20 Pin Header Through Hole Straight Surface Mount Header Male

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2547H25-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm Rating Voltage: 200V AC/DC
Type Of Row: 2 Housing Color: Black
PCB Mounting Orientation: Staright Connector System: Board-to-Board

Headers & Wire Housings 20Pin Header Through Hole ,Straight ,Surface mount Header (Male)



Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf



Specification Standardized:





Pitch

2.54mm

Poles

2*10





Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America





Our product portfolio range:

  • Wire to wire connectors
  • Wire to board connectors
  • FPC connectors
  • LVDS connectors
  • Power connectors
  • IDC connectors
  • Pin header
  • Female header

Sample Availability& Policy:



We will provide free samples 10 to 30 pieces of products upon customer's request.
All sample shipments will be either by air or by sea, with taxes and shipping costs paid by the customer.
