| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | XC-JVT1108 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Application:: | GPS , Automotive | Product Name:: | Car Audio Wire Harness Automotive Wire |
|---|---|---|---|
| Sample: | Free | Wire: | AWG22-24 |

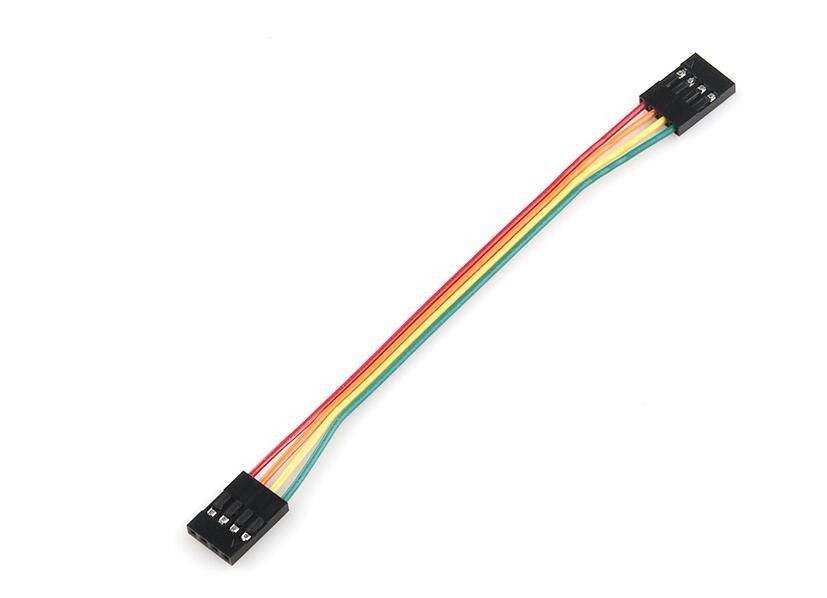

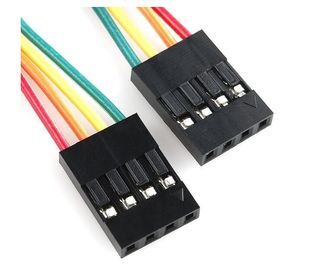

Dupon 2.54mm pitch 4pin single row connector housing cable assembly ,UL1571 AWG 24 ,wire lenght of 150mm
Wire Harness cable assembly , Available in Various Lengths
Specification Standardized:
| Pitch |
2.54mm |
|
Poles |
4 |
|
Applicable wire |
# 22-24 |
|
Rating Voltage |
200V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
