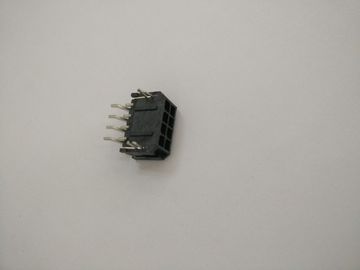

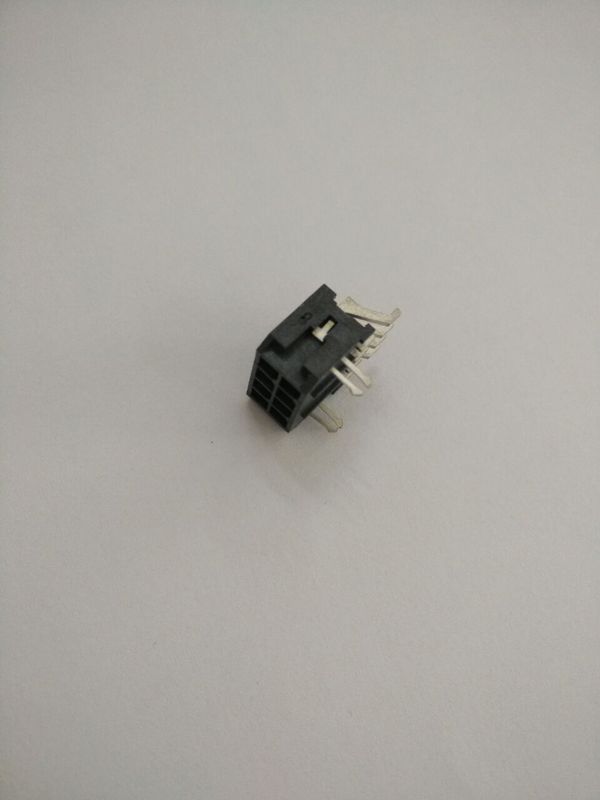

8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current -40°C - +85°C

8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current -40°C - +85°C

    • 8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current  -40°C - +85°C
    • 8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current  -40°C - +85°C
    • 8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current  -40°C - +85°C
  • 8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current  -40°C - +85°C

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT3026WLP-2X02SWRP1-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 3.0mm Color: Black
    Rating Current: 3A AC/DC No.of Pins: 8
    Product Category: Headers & Wire Housings Mounting Style: SMD

    Micro-Fit 3.0™ Right Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow Wire Compliant, Black



    Datasheet (PDF) & Other Documents Download center:

    1.JVT3026WLP-2XXSNRP1-S.pdf

    2.2016 JVT catalogue.pdf

    3. PCB SMT header connector.pdf



    8 Pole SMD PCB Mount Connectors With 3A AC / DC Rating Current  -40°C - +85°C





    Specification Standardized:





    Pitch

    3.0mm



    Poles



    8

    Applicable wire

    28#



    Rating Voltage

    200V AC/DC



    Rating Current

    3A AC/DC



    Withstand voltage

    1000V AC/minute



    Operating temperature

    -40°C to +85°C



    Insulation resistance

    1000MΩ Min



    Contact resistance

    20MΩ Max.







    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .
