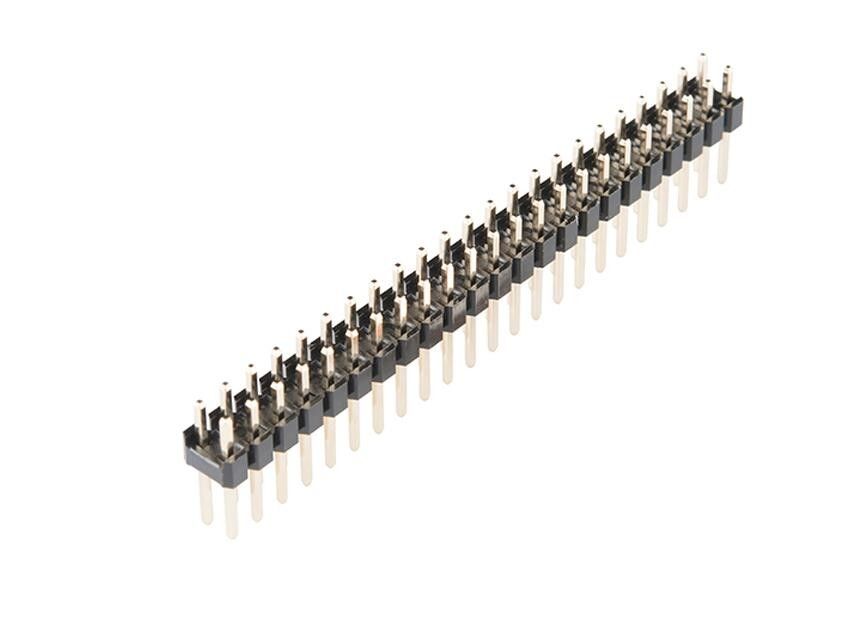

Gold Flash Plated Pin Header Connector 2.54 mm Pitch Staright PCB Mounting Orientation

Gold Flash Plated Pin Header Connector 2.54 mm Pitch Staright PCB Mounting Orientation

Gold Flash Plated Pin Header Connector 2.54 mm Pitch Staright PCB Mounting Orientation

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2547H25-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm No.of Poles: 2*23
Type Of Row: 2 Housing Color: Black
PCB Mounting Orientation: Staright Connector System: Board-to-Board
Highlight:

electrical pin connectors

,

pcb pin header

2x23 pin male header ,Each pin has a spacing of 0.1" in between each other, gold flash plated



Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf



Specification Standardized:





Pitch

2.54mm

Poles

2*23





Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
