Single Row Wire To Board Power Connector PCB SMT Header Electronic Cable Connectors

Single Row Wire To Board Power Connector PCB SMT Header Electronic Cable Connectors

Single Row Wire To Board Power Connector PCB SMT Header Electronic Cable Connectors

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1257

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm Equivalent: Molex
Applicable Wire: 22 -26 #AWG Poles: 2 - 16

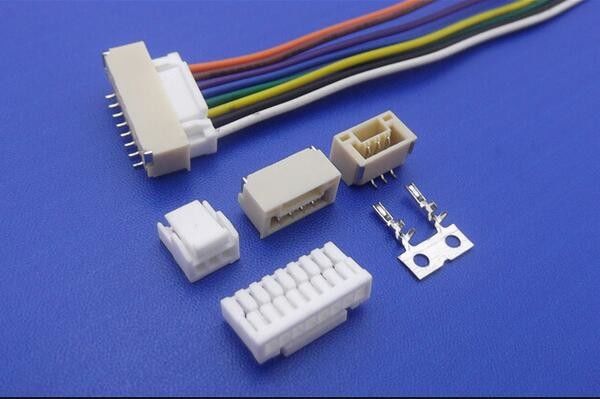

GHR 1.25mm Wire-to-Board series connector, 4 pins PCB SMT header electrical connectors,UL certificated



Developed for to PDP, LCD or small electronics equipments.
This low insertion force type connector realizes easier mating operation.
The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.





Product Profile
Series GH connector
Category Wire to Board Crimp style Connectors
Type Disconnectable type
Crimp style, With secure locking device
Feature With secure locking device



Specification
Pitch 1.25 mm
Current rating 1.0A (AWG#26)
Voltage rating 50V
PC board
mounting direction
Top entry, Side entry

Material Specification :



Terminal:

Phosphor Bronze ,Tin plated

Housing:

Nylon 66 UL94V-0

Wafer:

Nylon 66 UL94V-0

PIN:

Brass ,Tin plated






Features and Benefits:



Positive inner locks
Audible "click", low insertion force and secure mating


Tuning-fork style contact design
Secure contact, and avoids terminal stubbing


Flat area for pick-and-place
Easy automatic board placement


Reinforced metal solder tabs
Secure PCB retention and solder joint strain relief


Footprint compatibility
Drop-in replacement to various competitive versions


Variable plating options available
Design flexibility and cost-effectiveness



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
