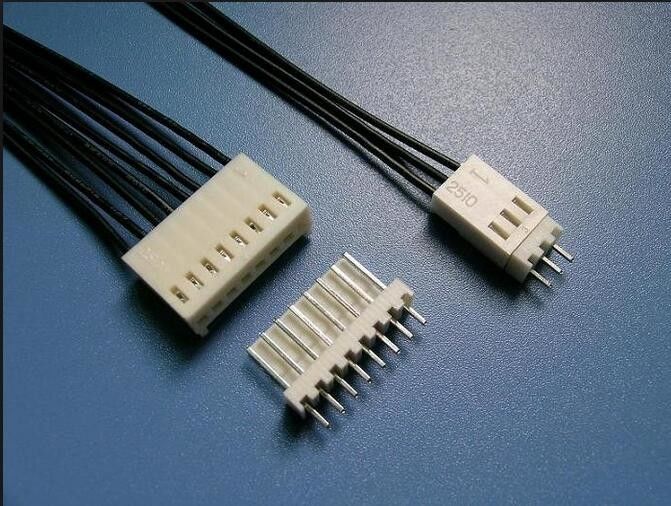

2.54mm 2510 Wire to Board Connector wire harness assembly / 4 pin connectors , UL certificated

2.54mm 2510 Wire to Board Connector  wire  harness assembly / 4 pin connectors , UL certificated

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT8001

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm Equivalent: Molex
Applicable Wire: 22 -26 #AWG Poles: 2 - 16

2.54mm 2510 Wire to Board Connector wire harness assembly / 4 pin connectors , UL certificated



Material Specification :



Terminal:

Phosphor Bronze ,Tin plated

Housing:

Nylon 66 UL94V-0

Wafer:

Nylon 66 UL94V-0

PIN:

Brass ,Tin plated





Standardized Specification:



Scale

2.54mm

Cables

2-16

Applicable wire

AWG#22-26

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

30MΩ Max.





Features and Benefits:



Positive inner locks
Audible "click", low insertion force and secure mating


Tuning-fork style contact design
Secure contact, and avoids terminal stubbing


Flat area for pick-and-place
Easy automatic board placement


Reinforced metal solder tabs
Secure PCB retention and solder joint strain relief


Footprint compatibility
Drop-in replacement to various competitive versions


Variable plating options available
Design flexibility and cost-effectiveness



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
