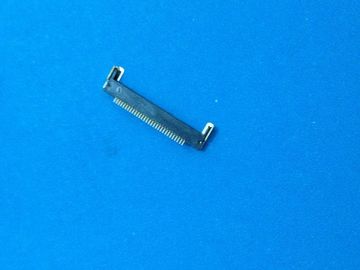

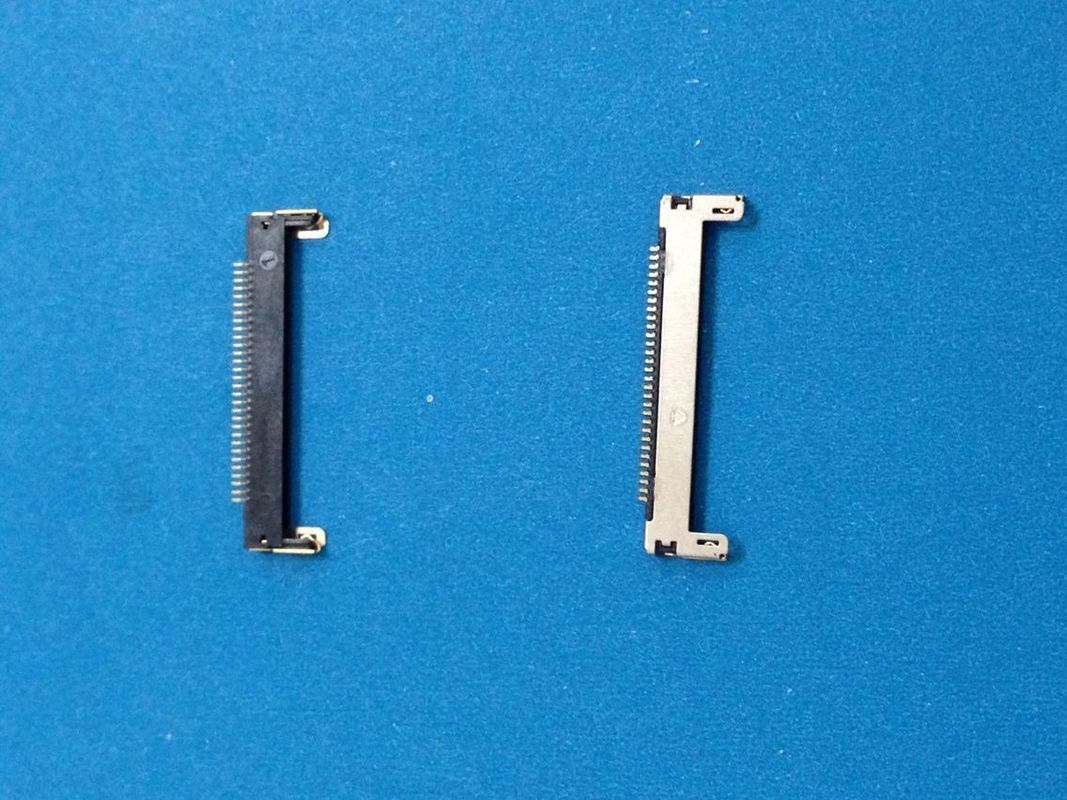

High Speed SMT Board To Board Connector 30 Pin 0.4 mm Pitch Nylon 66 UL94V-0

High Speed SMT Board To Board Connector 30 Pin 0.4 mm Pitch Nylon 66 UL94V-0

    • High Speed SMT Board To Board Connector 30 Pin 0.4 mm Pitch Nylon 66 UL94V-0
    • High Speed SMT Board To Board Connector 30 Pin 0.4 mm Pitch Nylon 66 UL94V-0
  • High Speed SMT Board To Board Connector 30 Pin 0.4 mm Pitch Nylon 66 UL94V-0

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT0400W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 0.4mm Color: Black
    Rating Current: 3A AC/DC No.of Pins: 30

    1. 0.4mm pitch I-PEX board to board PCB connector ,30Pin Nylon 66 UL94V-0,SMT type shrouded header


    2.  2.0mm Pitch Wafer for PCB Board Connector with DIP Style With 21 PINS


    Datasheet (PDF) & Other Documents Download center:

    1. 2016 JVT catalogue.pdf

    2. PCB SMT header connector.pdf



    Specification Standardized:





    Pitch

    0.4mm



    Poles

    30



    Applicable wire

    AWG32



    Rating Voltage

    200V AC/DC



    Rating Current

    3A AC/DC



    Withstand voltage

    1000V AC/minute



    Operating temperature

    -40°C to +85°C



    Insulation resistance

    1000MΩ Min



    Contact resistance

    20MΩ Max.







    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .
