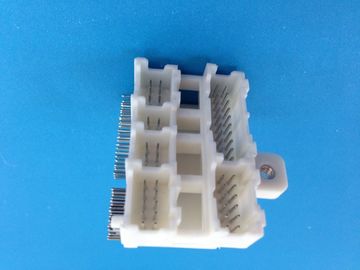

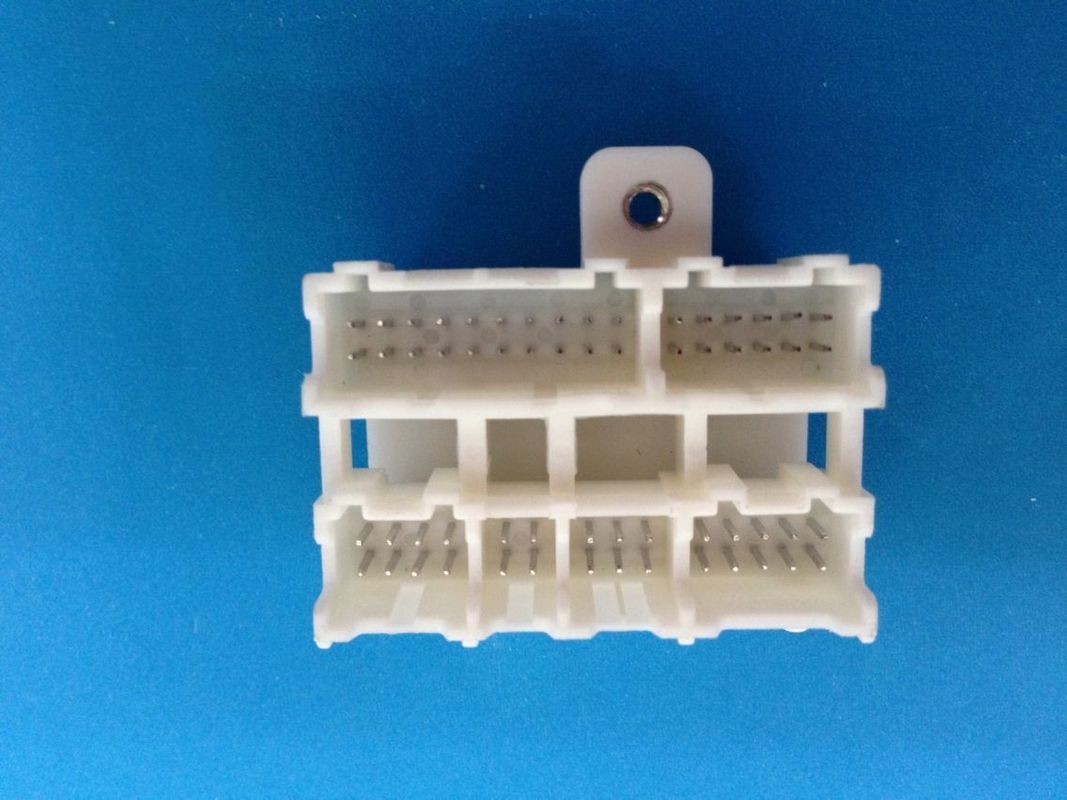

Custom 2.0 mm Pitch 60 Pin PCB Right Angle PCB Board Connector For Automotive System , Dual Row Type

    • Custom 2.0 mm Pitch 60 Pin PCB Right Angle PCB Board Connector For Automotive System , Dual Row Type
    • Custom 2.0 mm Pitch 60 Pin PCB Right Angle PCB Board Connector For Automotive System , Dual Row Type
  • Custom 2.0 mm Pitch 60 Pin PCB Right Angle PCB Board Connector For Automotive System , Dual Row Type

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2008WNO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.0mm Color: White
    Rating Current: 3A AC/DC No.of Pins: 5

    custom 2.0mm pitch 60Pin PCB right angle header connector for automotive system ,dual row type



    Datasheet (PDF) & Other Documents Download center:

    1. 2016 JVT catalogue.pdf

    2. PCB SMT header connector.pdf



    2.0mm Pitch Wafer  for PCB Board Connector with DIP Style With 21 PINS

    Specification Standardized:





    Pitch

    2.0mm



    Poles

    60



    Applicable wire

    28#



    Rating Voltage

    200V AC/DC



    Rating Current

    3A AC/DC



    Withstand voltage

    1000V AC/minute



    Operating temperature

    -40°C to +85°C



    Insulation resistance

    1000MΩ Min



    Contact resistance

    20MΩ Max.







    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .
