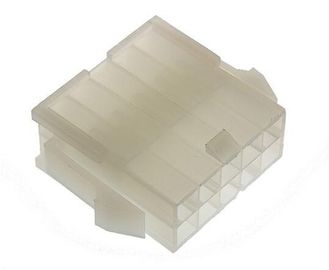

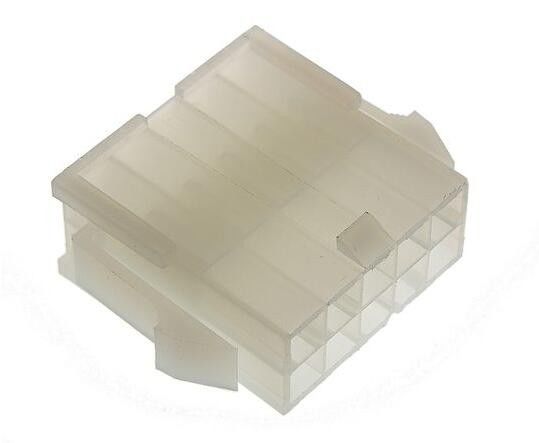

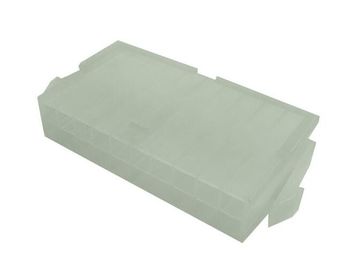

Automotive 4.20mm Wire - To - Wire Connector For Male Housing 10 Circuits UL94V-2

    • Automotive 4.20mm Wire - To - Wire Connector For Male Housing 10 Circuits UL94V-2
    • Automotive 4.20mm Wire - To - Wire Connector For Male Housing 10 Circuits UL94V-2
  • Automotive 4.20mm Wire - To - Wire Connector For Male Housing 10 Circuits UL94V-2

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1148

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Application: Signal, Wire-to-board,wire To Wire Equivalent: Molex
    Pitch - Mating Interface: 4.2mm Poles: 2 - 40
    Category: Crimp Housings Flammability: 94V-2

    4.20mm Wire-to-Wire Connector for Male Housing with ear , 10 Circuits, UL94V-2



    4.20mm Wire-to-Wire TPA™ Connector for Male Housing, 6 Circuits, UL94V-0, Ivory



    Datasheet (PDF) & Other Documents Download center:

    1. JVT1148HN2-2XXX.pdf

    2. 2016 JVT catalogue.pdf

    3. PCB SMT header connector.pdf



    JVT 1148 series  is offered in wire-to-wire options.  It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.

    A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.



    Automotive 4.20mm Wire - To - Wire Connector For Male Housing 10 Circuits UL94V-2



    Specification Standardized:



    Insulator Material:PA66

    Insulator Flammability: UL94V-2

    Terminal Material: Phosphor bronze or brass

    Operating temperature: -25 + 85°C

    Climatic category (IEC): 55/125/21

    Operating Humity range: Annual mean 75%

    Insulator color: black




    Application



    Our products are widely used in a variety of markets and applications, including:

    • Telecom and datacom systems and equipment
    • Computers, peripherals, systems
    • Industrial controls and robotics
    • Instrumentation
    • Medical
    • Test and Measurement
    • Automotive
    • Avionic and Military

    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .
