2.0mm Pitch 2 Pin Wire To Board Connector With Phosphor Bronze / Brass Terminal Material

2.0mm Pitch 2 Pin Wire To Board Connector With Phosphor Bronze / Brass Terminal Material

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1124

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Application: Signal, Wire-to-Board, Wire-to-Wire Equivalent: PH Series
Pitch - Mating Interface: 2.0mm Poles: 2 - 15
Category: Crimp Housings Flammability: 94V-0

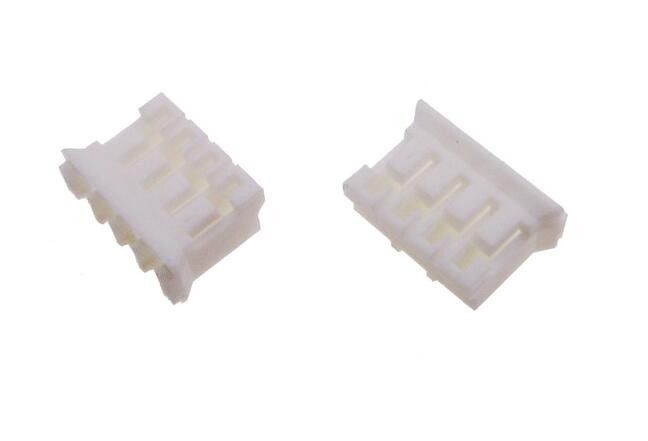

terminal housing 2 pin, white colour ,pitch 2.0mm equivalent of JST PH series



JVT1124 series  is offered in wire-to-board and wire-to-wire options. The system saves about 45% of PCB space compared to typical 2.00mm wire-to-board systems. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.

A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.





Specification Standardized:



Insulator Material:PA66

Insulator Flammability: UL94V-0

Terminal Material: Phosphor bronze or brass

Operating temperature: -25 + 85°C

Climatic category (IEC): 55/125/21

Operating Humity range: Annual mean 75%

Insulator color: black, gray, white

Tail style: straight DIP type, SMT type- straight, SMT type- horizontal



Pitch 1.25mm 2.00mm 2.50mm 2.54mm 3.96mm 4.20mm
Current Rating 1 Ampere 2 Ampere 3 Ampere 3 Ampere 7 Ampere 5-9 Ampere
Contact Resistance(Max) 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm
Withstand Voltage for one minute 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC
Insulator Resistance(Min) 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm




Application



Our products are widely used in a variety of markets and applications, including:

  • Telecom and datacom systems and equipment
  • Computers, peripherals, systems
  • Industrial controls and robotics
  • Instrumentation
  • Medical
  • Test and Measurement
  • Automotive
  • Avionic and Military

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
