| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT8001HNO-03 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 2.54mm | Wire Applicable: | AWG 28 - 32# |
|---|---|---|---|
| Cross: | Molex | Voltage Ratingt: | 50V |
| Application: | PCB | Gender: | Female |

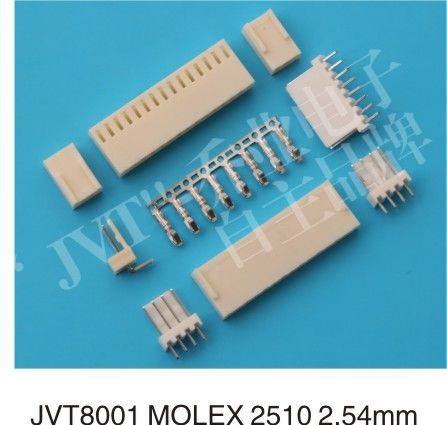

Molex 2510 connector 2.54mm pitch wire to board connector
Specification Standardized:
| contact space |
2.54mm |
|
poles |
2-16 |
|
Applicable wire |
AWG#28 - 32 |
|
Rating Voltage |
250V AC/DC |
|
Rating Current |
3A AC/DC |
|
Voltage Withstand |
1000V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
|
Terminal: |
Phosphor Bronze ,Gold plated |
|
Housing: |
Nylon66 UL94V-0 |
|
Wafer: |
Nylon 6T UL94V-0 |
|
PIN: |
Brass,Gold plated |
