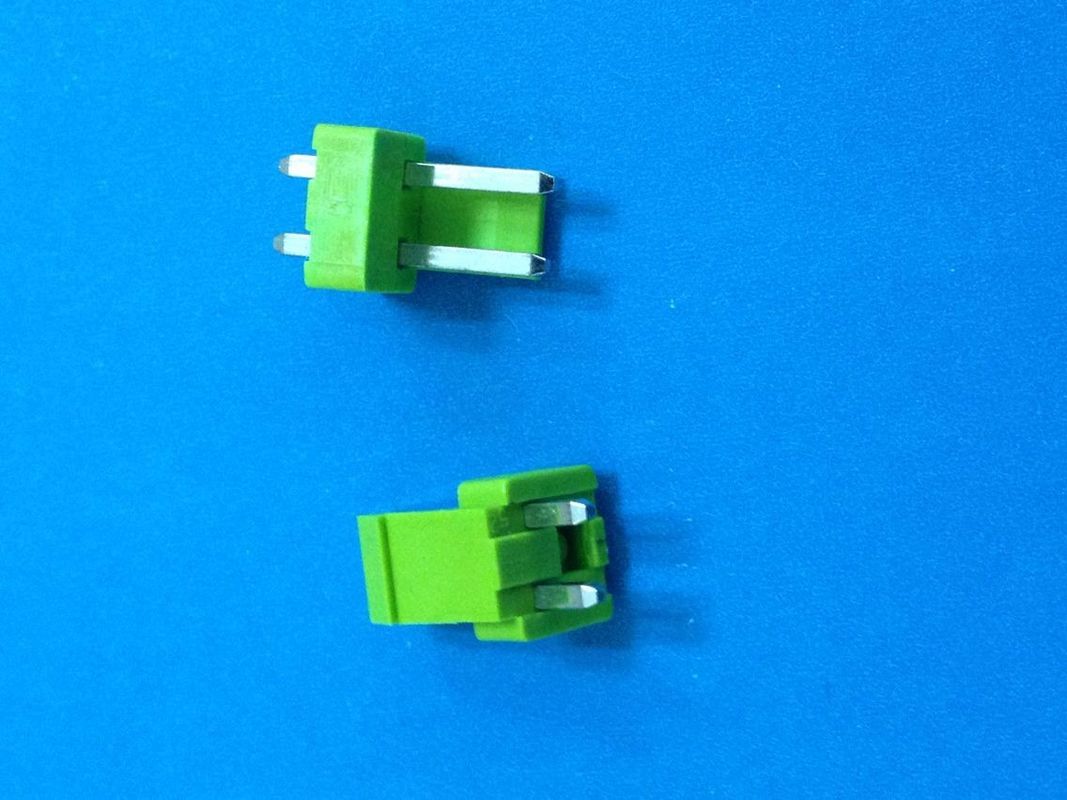

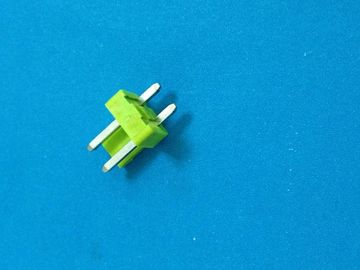

Nylon PA66 wire to board electrical connectors with female dip type right angle single row

    • Nylon PA66 wire to board electrical connectors with female dip type right angle single row
    • Nylon PA66 wire to board electrical connectors with female dip type right angle single row
  • Nylon PA66 wire to board electrical connectors with female dip type right angle single row

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1120WN2-02SN-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Currant Rating: 7A AC/DC Country Of Origin: China
    Pitch: 3.96mm Color: Green
    Application: PCB Certification: UL ,SGS

    PA66 VH3.96mm pitch wire to board wafer electrical connectors with female DIP type straight angle single row



    Material Specification:





    Specifications

    Poles: 2 to 12

    Pitch: 3.96mm

    Current rating: 7A AC/DC

    Voltage rating: 250V AC/DC

    Temperature range: -25 to +85°C

    Contact resistance: 10MΩ (maximum)

    Insulation resistance: 1000MΩ (minimum)

    Withstanding voltage: 1500V AC/minute

    Materials: PA66 and UL94V-2

    Color: Green



    Datasheet:



    Nylon PA66 wire to board electrical connectors with female dip type right angle single row





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
