| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT11505HNO-06L |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Equivalent: | Molex | Pitch: | 1.5mm |
|---|---|---|---|
| Color: | Black | Poles: | 2-16 |

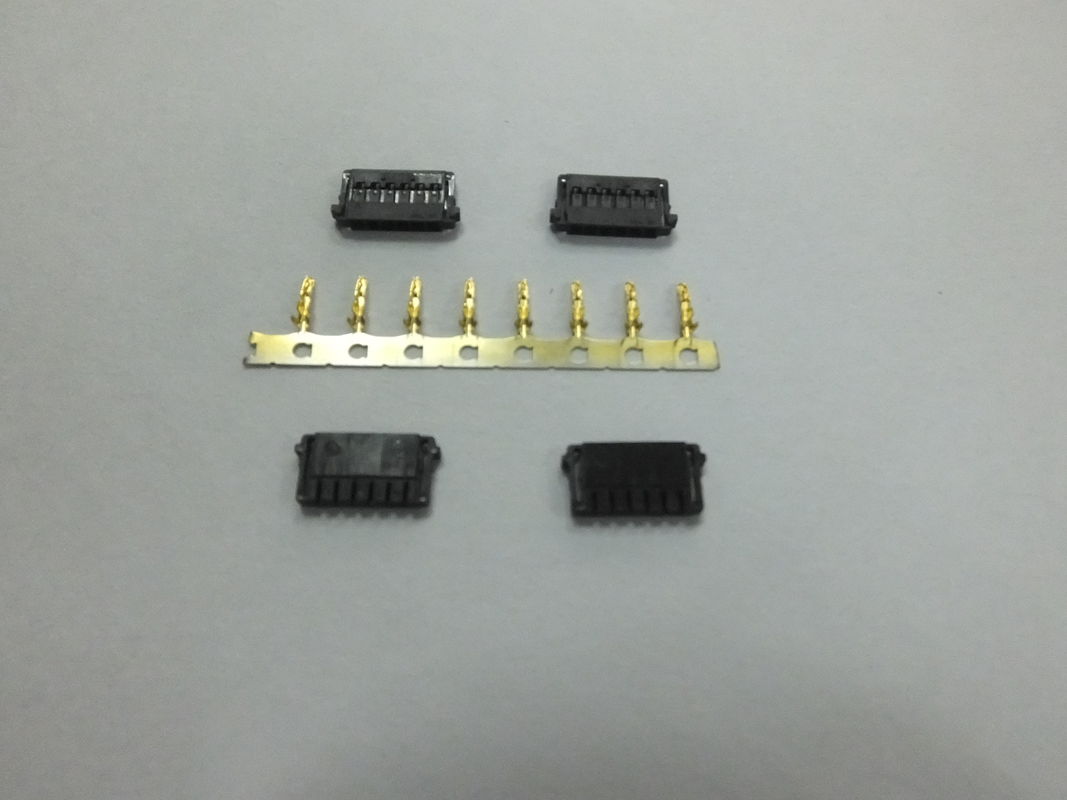

6 contact housing and terminal wire to board connector, 1.5mm pitch ,single row ,black color
Standardized Specification:
Pitch: 1.5mm
Poles: 2-16
Voltage rating: 250V AC/DC
Current rating: 2.5A AC/DC
Withstand voltage: 1500V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max
Specification on Material:
|
Terminal: |
Phosphor Bronze ,gold plated |
|
Housing: |
Nylon 66,UL 94V-0 |
|
Wafer: |
PA66 UL94V-0 |
|
PIN: |
Brass ,Gold plated |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
