10 Poles Wire To Board Connector With Secure Locking Device JVT2032 PA Series

10 Poles Wire To Board Connector With Secure Locking Device JVT2032 PA Series

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2032

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Equivalent: JST Pitch: 2.0mm
Feature: Highly Reliable Contact Poles: 2-16

2.0mm pitch connector with secure locking device ,10 poles ,JVT2032 PA series





Product Profile
Series PA connector
Category Wire to Board Crimp style Connectors
Type Disconnectable type
Crimp style, With secure locking device
Feature With secure locking device



Standardized Specification:



Pitch: 2.0mm

Poles: 2-16

Voltage rating: 250V AC/DC

Current rating: 2.5A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max



Specification on Material:



Terminal:

Phosphor Bronze ,Tin plated

Housing:

PBT UL 94V-0

Wafer:

PA66 UL94V-0

PIN:

Brass ,Gold plated

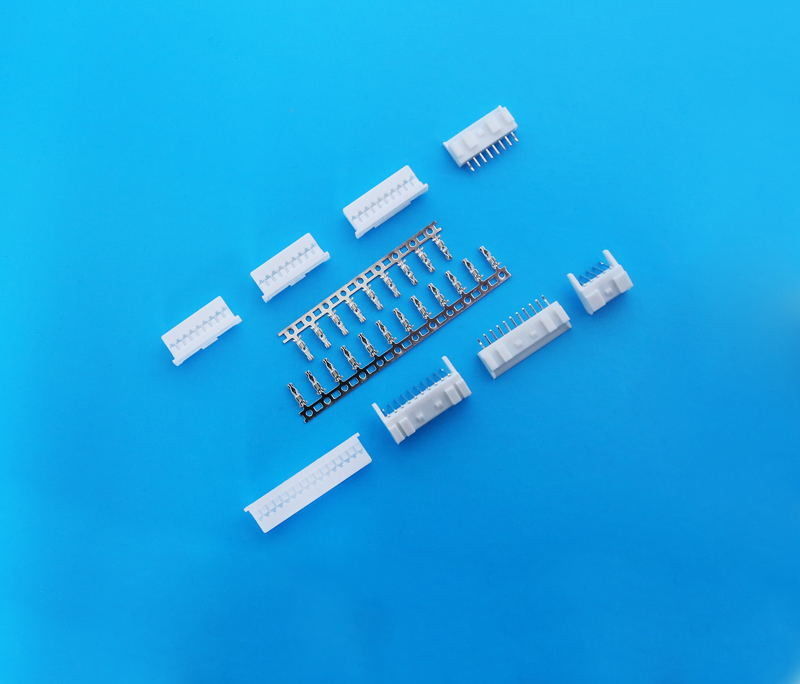

10 Poles Wire To Board Connector With Secure Locking Device JVT2032 PA Series



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
