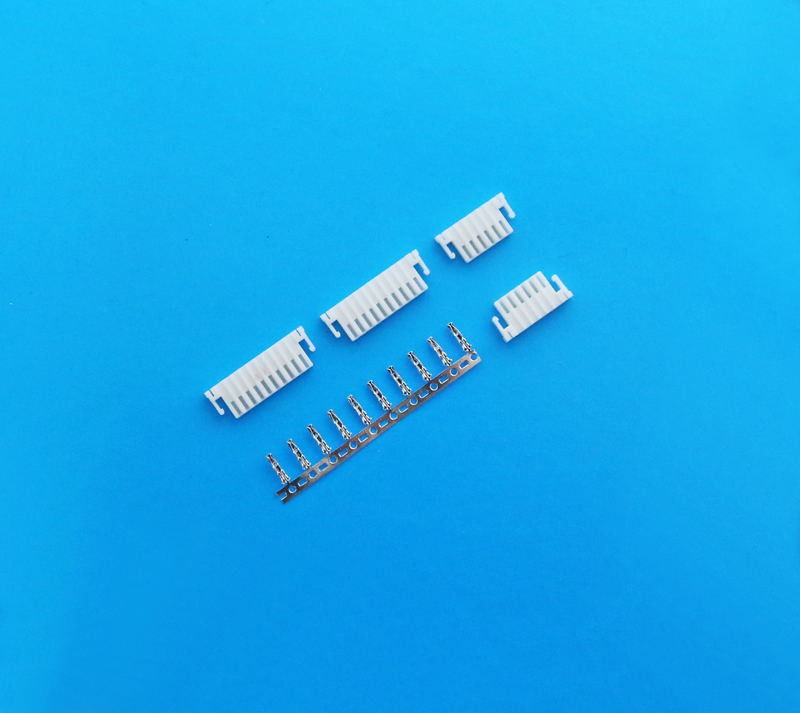

YH Pitch housing Wire to Board pcb Connector with Locking Tin Plating wire connectors

YH Pitch housing Wire to Board pcb Connector with Locking Tin Plating wire connectors

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2017HNO-05

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm Type: Wire To Board Connector
Gender: Male Color: White
Material - Metal: Phosphor Bronze Packaging Type: Bag

YH  2.0mm Pitch housing  Wire to Board Connector with Locking ,Tin Plating​

Datasheet (PDF) & Other Documents Download center:

1.JVT2017HN0-XXL.pdf

2.JVT2017TP-SNS.pdf



Specification Standardized:



Pitch

2.0mm

Cuic

2-16

Applicable wire

AWG 22-28

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Material Specification:



 Terminal: Phosphor Bronze ,Tin plated /gold plated



 Housing: PA66,UL94V-0



Wafer: Nylon 66 UL94V-0



  PIN: Brass,Gold plated/Tin plated





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
