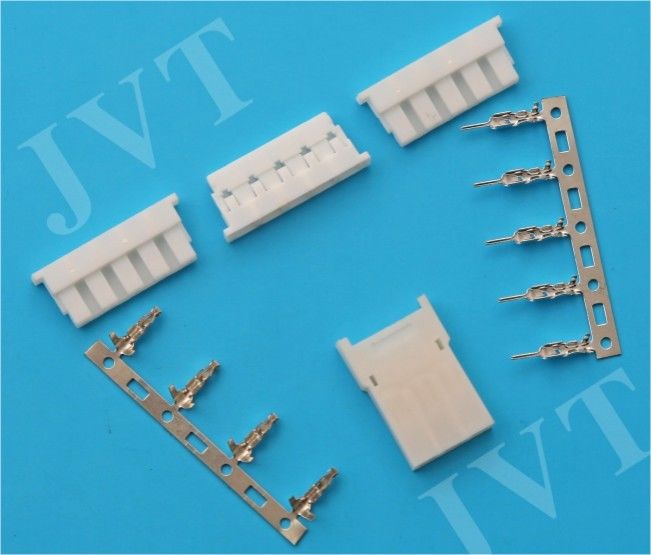

5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps

5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2009

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: BH Connector (4.0mm Pitch) Voltage Rating: 600V
Pitch: 4.0mm Type: Disconnectable Type Crimp Style, For LCD Back Light Lamps

5 Contact 4 mm Pitch Wire to Board Connector For LCD Back Light Lamps JST BHR-05VS-1 Equivalent





Equivalent of JST BHR-05VS-1 4.0mm  5 contact   housing Wire to Board Connector ,For LCD back light lamps



Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.
*SMT configuration
*Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with sillicone rubber.





  • Low profile
  • SMT configuration
  • Applicable to special wires
  • Headers with locating bosses
  • Housing lock also serves as polarizing device





Specifications :



Pitch

4.0mm

Poles

 2-5

Applicable wire

AWG#18-22

Voltage rating

600V AC/DC

Current rating

1A AC/DC

Withstand voltage

1800V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max



5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps



5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps



5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps



5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps



5 Contact 4 mm Pitch Wire To Board Connector For LCD Back Light Lamps
