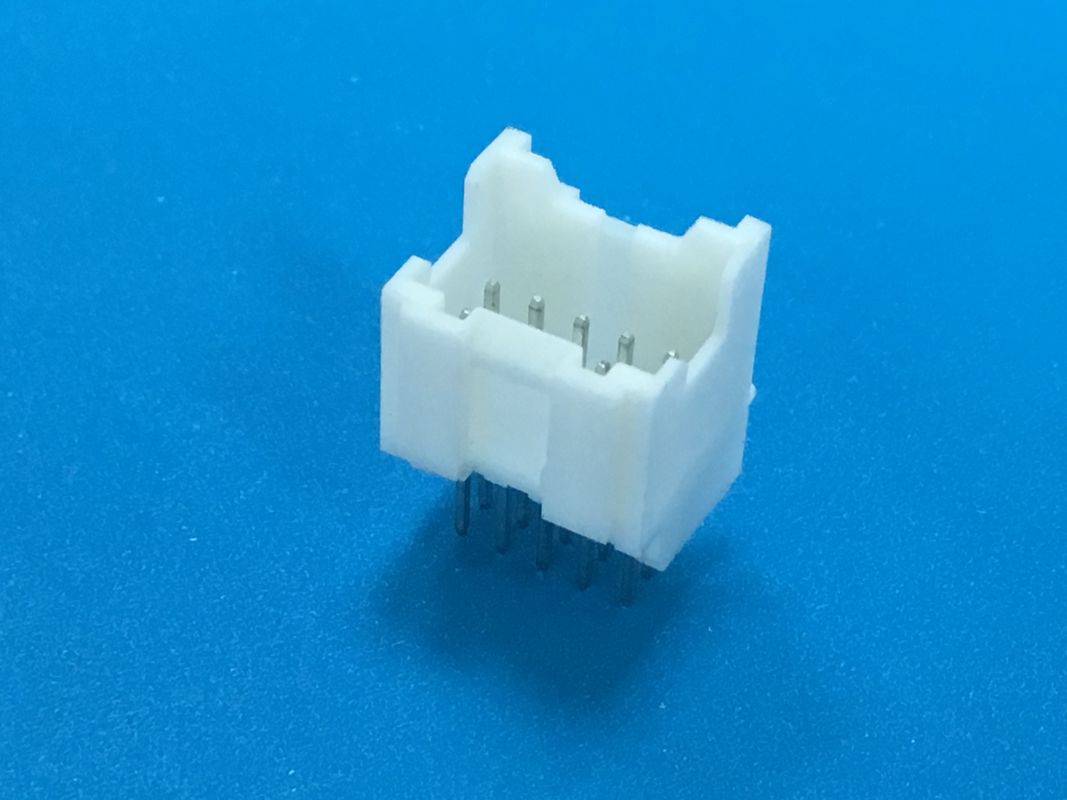

PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pins Daul Row

PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pins Daul Row

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2038WNO-10SNWHR-D

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Header Connector Angle: Straight
Type: DIP Number Of Pins: 10

PAD 2.0mm Straight header connector , DIP 10 Pins PCB board  Connectors ,daul row



Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated



JVT 2.0mm Pitch straight Wafer for PCB Board Connector ,equivalent of JST PAD series





Standard Specification:



Pitch

2.0mm

Pol4es

2*2-2*16

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

3A AC/DC

Withstand voltage

800V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max





Drawing



PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pins Daul Row



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces





Our advantage





Favorable unit price



Strict quality control



Shortest lead time



Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



Accelerated equipments:10 automated injection molding
                                        20 automated pin - setting
                                       6 high precision stamping machines
