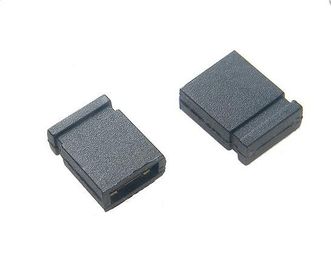

Close Type 2.54mm Mini Jumper Connector 2 Poles for 200V AC/DC Rating Current,height of 6.0mm

    • Close Type 2.54mm Mini Jumper Connector  2 Poles for 200V AC/DC Rating Current,height of 6.0mm
    • Close Type 2.54mm Mini Jumper Connector  2 Poles for 200V AC/DC Rating Current,height of 6.0mm
  • Close Type 2.54mm Mini Jumper Connector  2 Poles for 200V AC/DC Rating Current,height of 6.0mm

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2541HPT-02BK-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm No.of Rows: 1
    Rating Current: 200V AC/DC Contact Plating: Tin Plated
    Contact Material: Brass Color: Kinds Of

    Product name:



    Close Type 2.54mm Mini Jumper Connector  2 Poles for 200V AC/DC Rating Current



    2.54mm Mini Jumper Connector  ,2poles ,close type ,balck



    2.54mm mini jumper line hat mini jumper use for pin header

    Black Mini Micro Jumper Connector For 2.54mm Pin Header Spacing Shunt

    Datasheet (PDF) & Other Documents Download center:

    1.JVT2541HPT-02BK-A.pdf

    2.2016 JVT catalogue.pdf

    3.PCB SMT header connector.pdf



    Free samples are provided!





    Specification Standardized:



    Pitch

    2.54mm

    Poles

    2

    Applicable wire

    #28-32

    Rating Voltage

    200V AC/DC

    Rating Current

    3A AC/DC

    Withstand voltage

    1000V AC/minute

    Operating temperature

    -40°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.





    Material Specification :



    Housing: PA66,UL94V-0



    PIN: Brass,Gold plated





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
