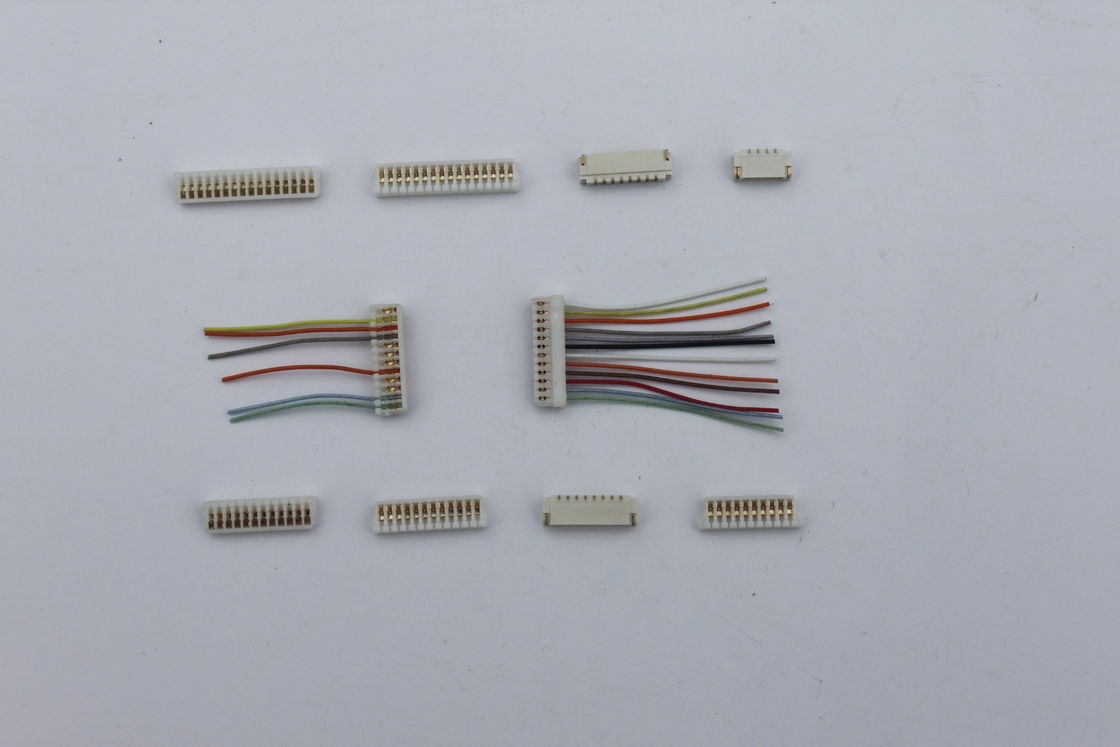

Disconnectable Insulation Displacement IDC Connectors 0.8mm Pitch Single Row 10 Pin

Disconnectable Insulation Displacement IDC Connectors 0.8mm Pitch Single Row 10 Pin

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT0800

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Contact Space: 0.8mm Header Type: Top Entry Type ,side Entry Type
Applicable Wire: AWG 32 ,OD 0.9mm Type: IDC Style, Compact Type, Low-profile Type

Disconnectable Insulation Displacement IDC Connectors 0.8mm Pitch Single Row 10 Pin



0.8mm pitch/disconnectable Insulation displacement IDC  connectors,single row ,10 pin



PDF datasheet download as below :

JVT0800HXX-XX(SY) Model (1).pdf



The world's first 0.8mm pitch wire-to-board insulation displacement connector.

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.





  • 3-point grip construction
  • Super fine wires are applicable
  • Shrouded header
  • Twin  U-slot insulation displacement section





Specification Standardized:



Pitch: 0.8mm

Poles: 2-18

Applicable wire: AWG 32

Voltage rating: 1000V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 1000V AC/minute

Working temperature: -40°C to +85°C

Insulation resistance: 5000MΩ Min

Contact resistance: 20MΩ Max.





Material Specification :



Housing :Nylon 66 UL94V-0



Wafer: Thermal Plastic,UL94V-0



PIN: Phosphor Bronze ,Gold plated



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
