| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1125 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 2.0mm | Color: | White |
|---|---|---|---|
| Rating Current: | 3A AC/DC | No.of Pins: | 7 |

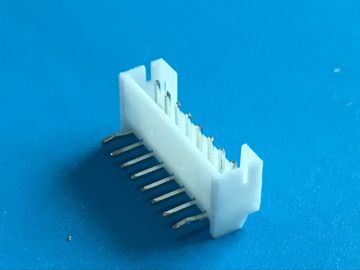

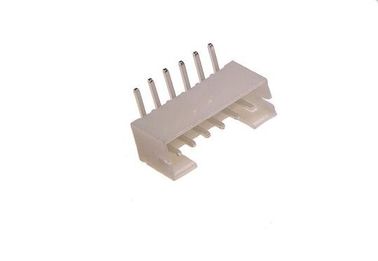

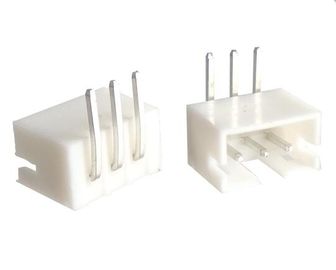

PH 2.0mm PCB Board Electrical Cable Connector Single Row with Surface Mount Technology Type
Datasheet (PDF) & Other Documents Download center:
1.JVT1125WN2-XXSNXK-D(YFY) Model (1).pdf
*The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
*The contact has a long wire strip holding length of 2.6 +/-0.4mm.
*Fully shrouded header
*The same shrouded header can be used for the KR/KRD/CR insulation displacement connectors.
| Specification | ||||||||
|
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
