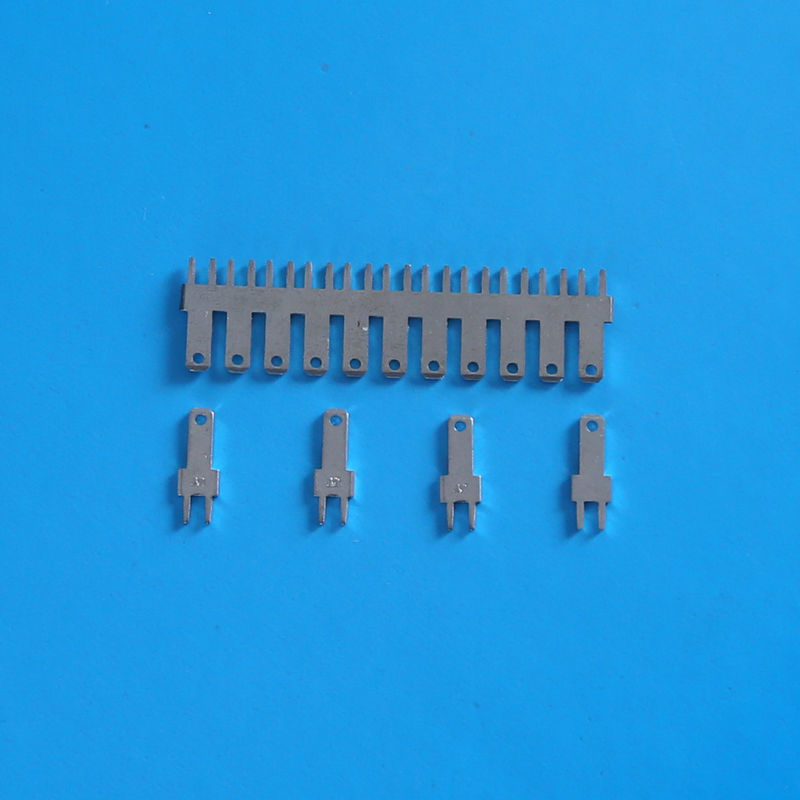

One Pole PCB Power Connector 0.8mm Surface Mount Electrical Battery Connectors

One Pole PCB Power Connector 0.8mm Surface Mount Electrical Battery Connectors

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT110TB-SNSM-280

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Thickness: 0.8mm No.of Poles: 1
Rating Current: 3A AC/DC Type Of Row: #28-32

One Pole Design Power Connector PCB , 0.8mm Dimension Surface Mount Connectors


Datasheet (PDF) & Other Documents Download center:

1. JVT110TB-SNSM-280.pdf



Terminals & Splices - PCB Terminals


  • Mating Tab Width 2.8 mm
  • Mating Tab Thickness 0.8 mm
  • Receptacle Stock Thickness 0.51 mm
  • Plating Material tin plated
  • Mounting Style Stud Mount
  • Stud Hole Yes
  • Packaging Method Bag
  • Terminates To Printed Circuit Board
  • Terminal Orientation Straight
  • Terminal Angle Straight


Specification Standardized:

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .


Payment Details:


Payment Terms:T/T or Western Union


Minimum Order:1000 Pieces

Equipment and Service:


10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines


prefessional and patient pre-service & after-service


professsional sales team & engineering team & techinology team


puntual delivery time and complete packaging process


preferable price and best quality
