| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT3026WNO-2X5SNRP-D |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | PCB Board Wafer | Type Of Row: | Double Row |
|---|---|---|---|
| Type: | DIP | Number Of Pins: | 2*6 |

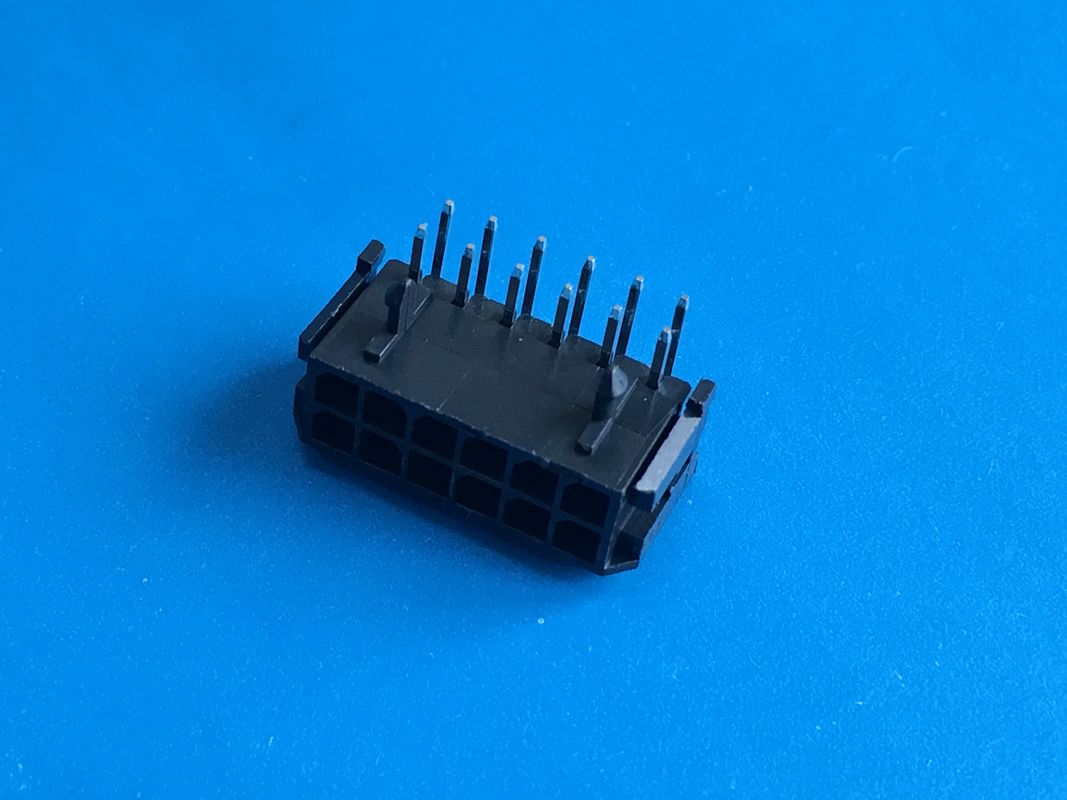

PCB Board Double Row Electrical Terminal Connectors Tin Plated DIP Type
JVT 3.0mm Pitch Wafer for PCB Board Connector With Double Row
Datasheet (PDF) & Other Documents Download center:
1.JVT3026WXX-2XXSNRP-D(SS) Model (1).pdf
2.PCB SMT header connector.pdf
Material Specification:
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated
Standard Specification:
|
Pitch |
3.0mm |
|
Pol4es |
4-40 |
|
Applicable wire |
AWG#18-22 |
|
Voltage rating |
250V AC/DC |
|
Current rating |
5A AC/DC |
|
Withstand voltage |
500V AC/minute |
|
Working temperature |
-25°C to +85°C |
|
Insulation resistance |
100MΩ Min |
|
Contact resistance |
20MΩ Max |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
|
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
