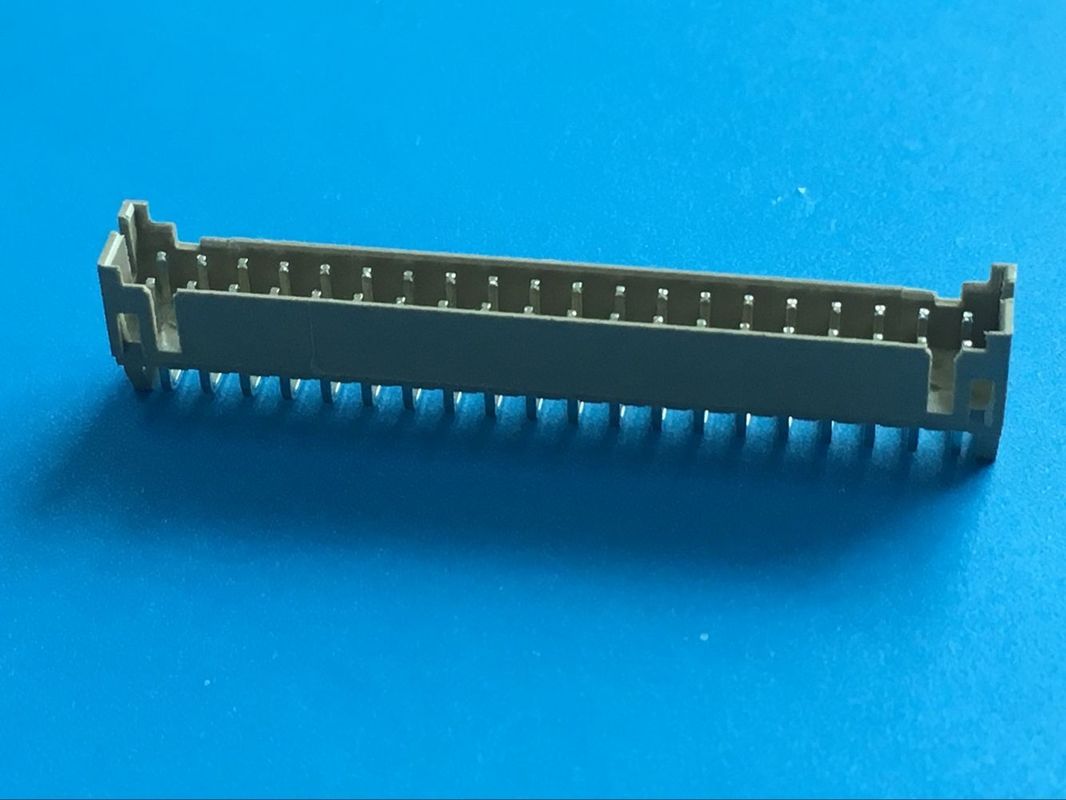

Wafer High Speed PCB Shrouded Header Connector Brass Tin Plated PA66 Housing

Wafer High Speed PCB Shrouded Header Connector Brass Tin Plated PA66 Housing

Wafer High Speed PCB Shrouded Header Connector Brass Tin Plated PA66 Housing

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2008

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Wafer Angle: Right Angle
Type: DIP Number Of Pins: 20

Brass Tin Plated PA66 Housing PCB shrouded header  Connector , 2.0mm Pitch Wafer High Speed Connector



Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated





Wafer High Speed PCB Shrouded Header Connector Brass Tin Plated PA66 Housing



Standard Specification:



Pitch

1.5mm

Pol4es

4-40

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .
