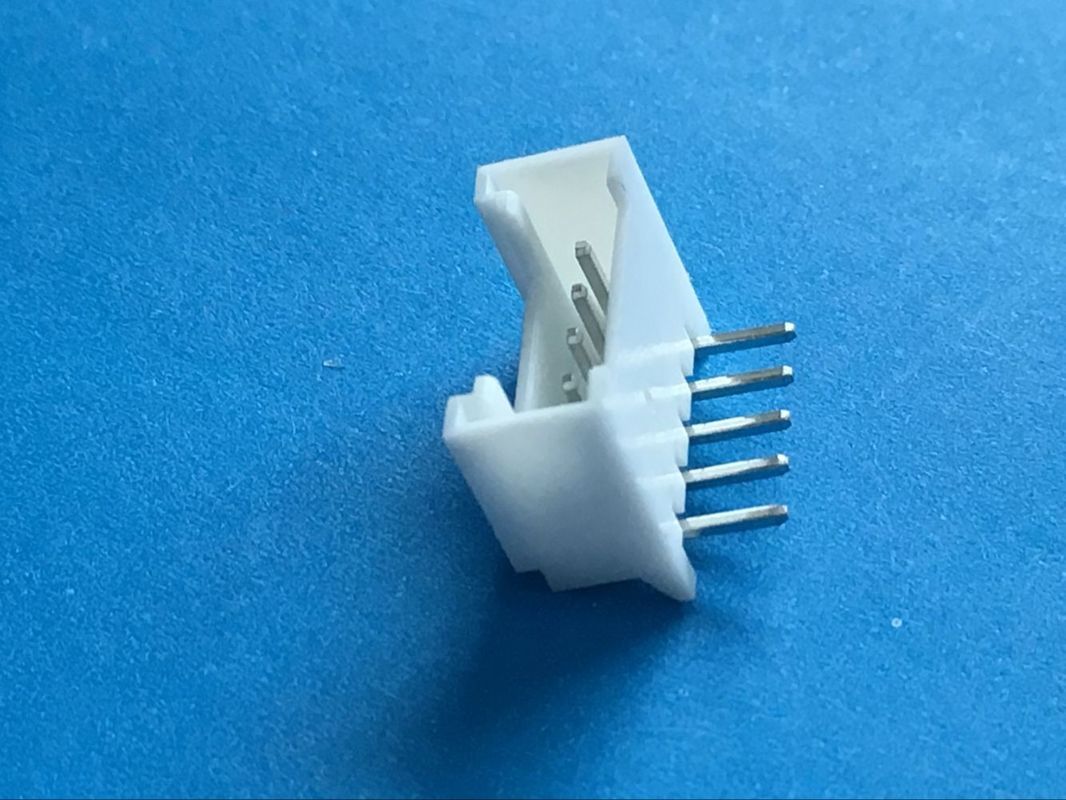

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors in White Color With DIP Type

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors in White Color With DIP Type

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors in White Color With DIP Type

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1001WN2-XXSNRK-D

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Wafer Application: PCB Board Connector
Orientation: Vertical Number Of PIns: 5





JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors in White Color With DIP Type





Standard Specification:



Pitch

2.5mm

Poles

 2-16

Applicable wire

AWG#18-22

Voltage rating

250 V AC/DC

Current rating

3A AC/DC

Withstand voltage

1000 V AC/minute

Working temperature

-20°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max





Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

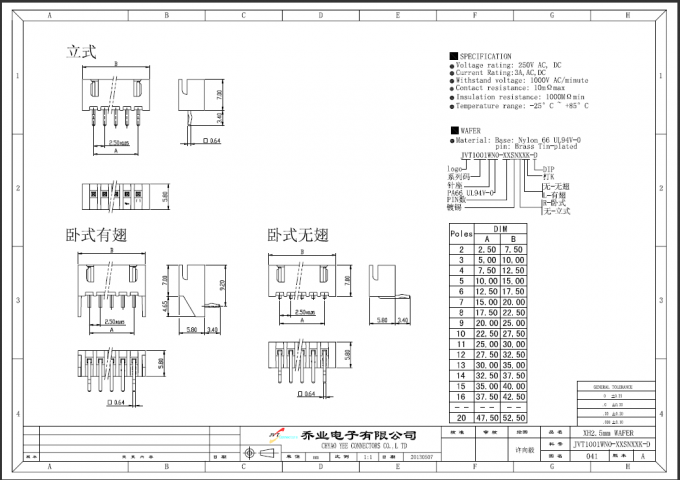

Drawing



JVT 2.5mm Pitch Wafer for PCB Board Connector in White Color With DIP Type



JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors in White Color With DIP Type





Our advantage





Favorable unit price



Strict quality control



Shortest lead time



Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



Accelerated equipments:10 automated injection molding
                                        20 automated pin - setting
                                       6 high precision stamping machines






Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
