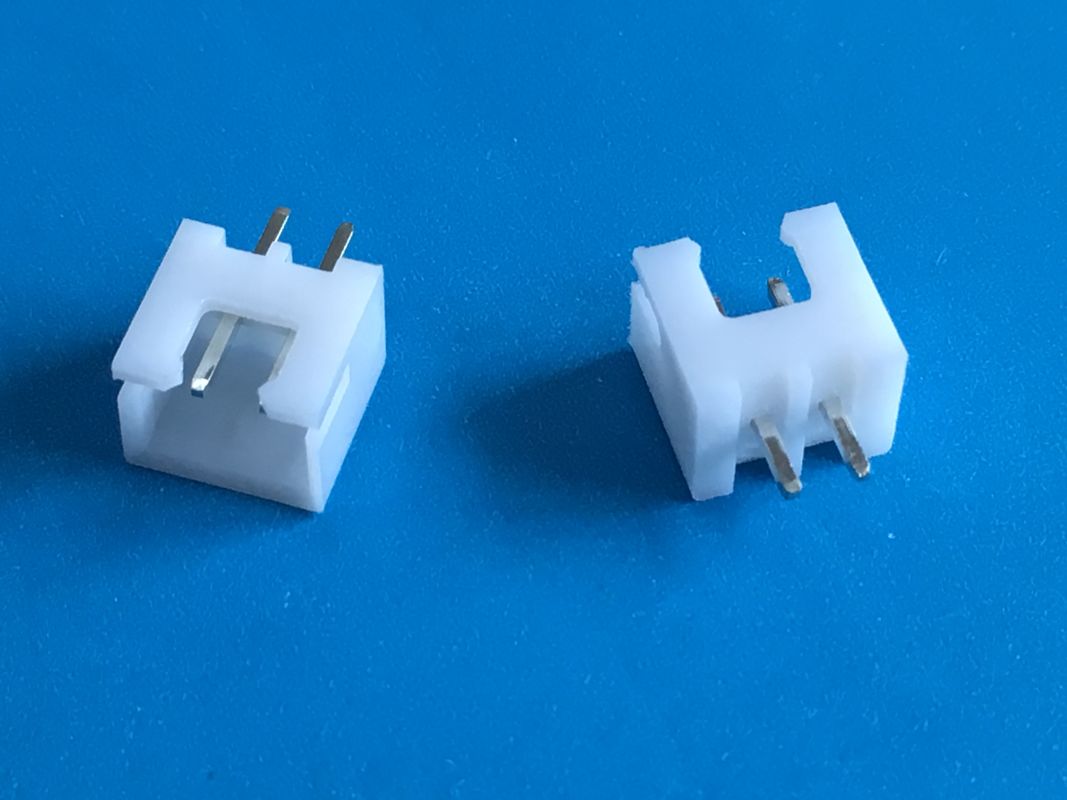

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in White Color

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in White Color

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in White Color

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1001

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Wafer Application: PCB Board Connector
Orientation: Vertical Number Of PIns: 2





Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated



JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in White Color





Application Area:



Cell Phone

Table Computer

Lighting





Standard Specification:



Pitch

2.5mm

Poles

 2-20

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

3A AC/DC

Withstand voltage

1000V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max



 Drawing



JVT 2.5mm Pitch Wafer for PCB Board Connector With Two Pins in White Color



JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in White Color
