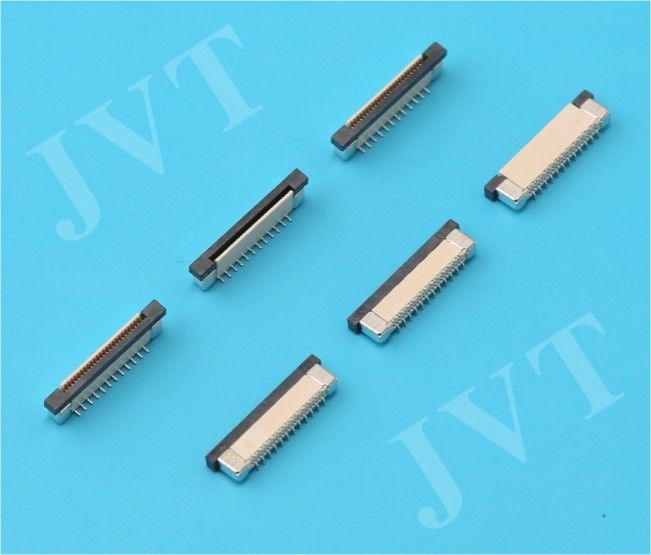

0.5mm pitch 10 pin ZIF FPC Electrical connector for PCB Board Connector with 180 Degree 1.5mm Height SMT type

0.5mm pitch 10 pin ZIF FPC Electrical connector for PCB Board Connector with 180 Degree 1.5mm Height SMT type

0.5mm pitch 10 pin ZIF FPC Electrical connector for PCB Board Connector with 180 Degree 1.5mm Height SMT type

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT0504

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Contact Space: 0.5mm No. Of Contact: 10-30
Connector Type: Bottom Contact Insulation Resistance: 100 Megohms Min.

0.5mm pitch 10 pin ZIF FPC connecto for PCB Board Electrical Connector with 180 Degree 1.5mm Height SMT type





Specification Standardized:



Pitch

0.5mm

Poles

10-30

Applicable wire

#22-30

Rating Voltage

500V AC/DC

Rating Current

3A AC/DC

Withstand voltage

500V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

800MΩ Min

Contact resistance

20MΩ Max.



 Applicable FFC/ FPC thickness: 0.3mm +/- 0.03mm, ZIF structure bottom-surface connection type.




Material Specification :



Housing: PA66,UL94V-0



PIN: Brass,Gold plated





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
