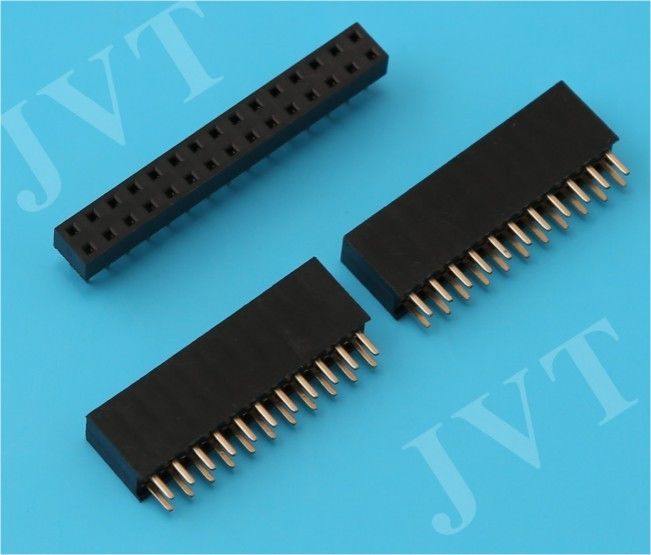

2 - 80 Poles Dual Row 2.54mm Female Header Double Row 2x6 Pins SMT SMD Female Header Socket

2 - 80 Poles Dual Row 2.54mm Female Header Double Row  2x6 Pins SMT SMD Female Header Socket

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2546H70-2XX-S

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm Main Color: Black
Number Of Rows: 2 Plating: Gold Plated
Product Name: SMT Female Pin Header Socket Net Weight: 3g

Product Description:



SMT Type Female Header Connector ,  2 - 80 Poles Dual Row 2.54mm Female Header



 2.54mm Female Header , Female Header Connector Dual Row SMT Type



SMT Type Female Header with Dual Row and 2.54mm Height= 7.1mm





Specification Standardized:



Pitch: 2.54mm



Poles: 2-80



Applicable wire:



Voltage rating: 250V AC/DC



Current rating: 3A AC/DC



Withstand voltage: 1000V AC/minute



Working temperature: -40°C to +85°C



Insulation resistance: 1000MΩ Min



Contact resistance: 20MΩ Max.



2 - 80 Poles Dual Row 2.54mm Female Header Double Row  2x6 Pins SMT SMD Female Header Socket



Material Specification :



Housing: PA6T ,UL 94V-0



PIN: Brass ,Gold plated



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America



Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
