| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1258 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Application: | Power, Wire-to-Board | Equivalent: | Molex |
|---|---|---|---|
| Series: | 51146 | Gender: | Female |

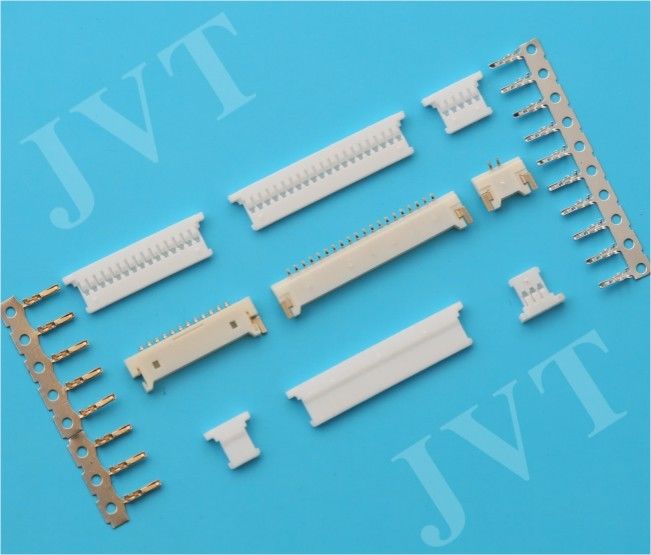

Ultra Low Profile Wire to Board Connector with Molex 51146-0200 Equivalent
JVT 1.25mm Pitch Wire-to-Board Receptacle Housing, Ultra Low Profile, 2 Circuits,equivalent of molex 51146-0200
Datasheet (PDF) & Other Documents Download center:
Specification Standardized:
Pitch: 1.25mm
Poles : 2-20
Applicable wire : AWG#28-32
Voltage rating : 1000V AC/DC
Current ratingb : 1A AC/DC
Withstand voltage: 500V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance : 500MΩ Min
Contact resistance : 20MΩ Max.
Material Specification :
|
Terminal: |
Phosphor Bronze ,Gold plated |
|
Housing: |
Nylon66 UL94V-0 |
|
Wafer: |
Nylon 6T UL94V-0 |
|
PIN: |
Brass,Gold plated |
Features and Benefits:
Ultra low-profile
Meets slimmer equipment needs
Spring box contact
Protection, durability and good electrical contact
0.90mm wipe length
Removes contaminants
Durable blade-type header pins
Protect against damage during mating
Fully-shrouded anti-flux wicking design
Protects contacts during soldering and cleaning processes
Application :
LCD and TV panel
Notebook PC
PDP and TV Panel
Point of Sales Terminals
Set Top Boxes
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Main Export Markets:
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
