JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for LCD / TV Panel

JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for  LCD / TV Panel

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1257

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 1.25mm Current Rating: 1.0A (AWG#26)
Rating Voltage: 150V PC Board Mounting Direction: Top Entry, Side Entry

1.JST SM02B-GHS-TB 2 Pin Right Angle Header Crimp Style Connect for  LCD / TV Panel

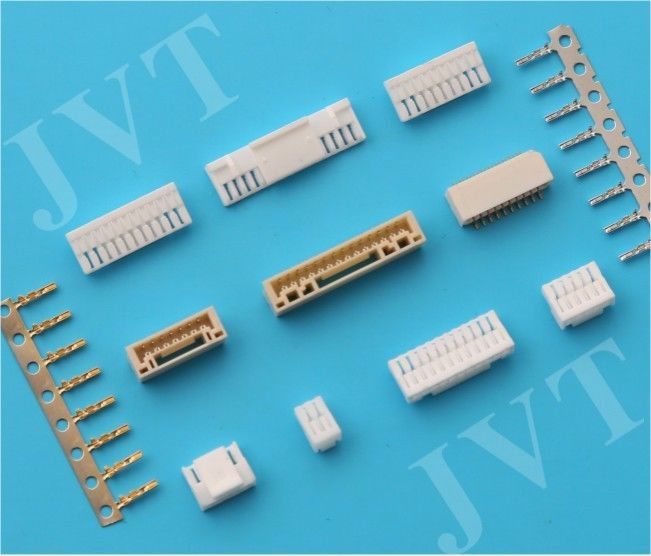

2.cross part of JST SM02B-GHS-TB ,2pin right angle header  ,Wire to Board Crimp style Connectors



Datasheet (PDF) & Other Documents Download center:

1.JVT1257HN0-XXL(QY) Model (1).pdf

2.JVT1257TP-SNXL(HM).pdf

3.JVT1257W9T-XXSNL-S(XFE).pdf



Developed for to PDP, LCD or small electronics equipments.
This low insertion force type connector realizes easier mating operation.



  • Secure locking structure
  • Contact lock structure
  • Preventionof contact deformation
  • Clear engagement click sounds



Specification Standardized:



Pitch

1.25mm

Poles

 2-15

AWG

AWG#28 - 32

Voltage Rating

150V AC/DC

Rating Current

1A AC/DC

Withstanding Voltage

500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max.







Material Specification :



Terminal: Phosphor Bronze ,Tin plated



Housing: PA66,UL94V-0





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
