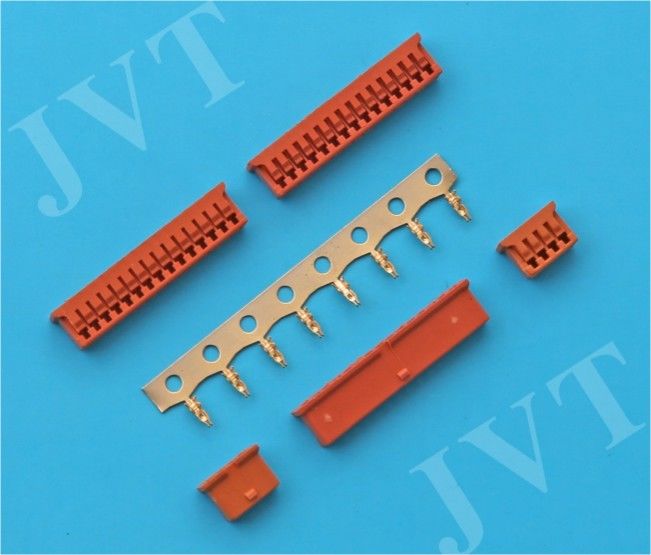

1.25mm Pitch for Wire to Board pcb Connector Equivalent with JAE Style,2-15pin , Nylon 66 UL94V-0

1.25mm Pitch for Wire to Board  pcb Connector Equivalent with JAE Style,2-15pin , Nylon 66  UL94V-0

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1250

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 1.25mm Equivalent: JAE
Current Rating: 1A AC / DC Applicable Wire: 28 - 32

1.25mm Pitch for Wire to Board pcb Connector Equivalent with JAE Style,2-15pin ,Nylon 66 UL94V-0





Specification Standardized:



Pitch: 1.25mm



Poles: 2-15



Applicable wire: AWG#28-32



Voltage rating: 150V AC/DC



Current rating: 1A AC/DC



Withstand voltage: 500V AC/minute



Working temperature: -25°C to +85°C



Insulation resistance: 500MΩ Min



Contact resistance: 20MΩ Max.





Material Specification :



Terminal: Phosphor Bronze ,Tin plated



Housing: PA66,UL94V-0





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:



  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces


Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
