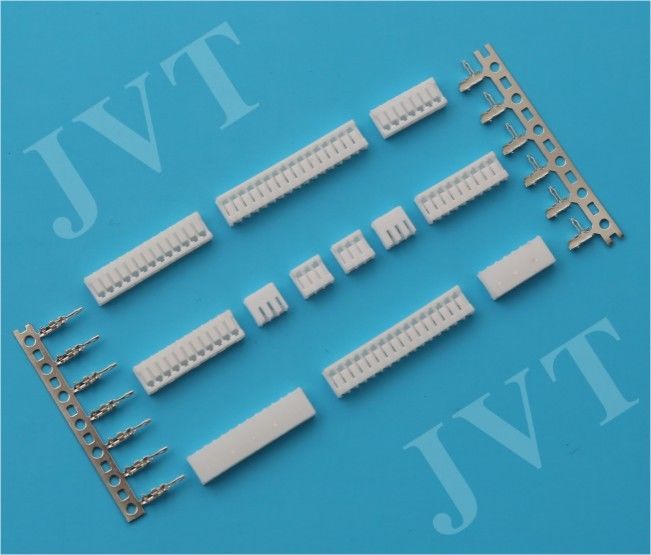

Printed Circuit Boards Wire to Board Connector , Tin Plated 10 Pin Header Connector

Printed Circuit Boards Wire to Board Connector , Tin Plated 10 Pin Header Connector

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1501

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 1.5mm Type: Board-in Connector Crimp Style, Board-in Connector
PC Board Mounting Direction: Top Entry ,side Entry Current Rating: 0.7A (AWG#26)

Printed Circuit Boards Wire to Board Connector , Tin Plated 10 Pin Header Connector







1.5 mm 10pin housing connector , board in connector , Wire to Board Crimp style Connectors





This low-profile, board-in connector, with a mounting height of only 4.25mm and a thickness of 2.4mm, is soldered directly onto PC boards.



  • slim ,low-profile design
  • Housing lances
  • Easy mounting onto printed circuit boards
  • Rugged contact construction



Material Specification :



Terminal: Brass ,tin plated



 Housing: PA66,UL94V-0





Specification Standardized:



Pitch: 1.5mm



Poles: 2-16



Applicable wire: AWG#28-30



Voltage rating: 50V AC/DC



Current rating: 1A AC/DC



Withstand voltage: 500V AC/minute



Working temperature: -25°C to +85°C



Insulation resistance: 500MΩ Min



Contact resistance: 20MΩ Max.



Primary Competitive Advantages:

Service                                                             Country of Origin

Experienced Staff                                             Guarantee/Warranty

International Approvals                                     Price

Prompt Delivery                                                Quality Approvals



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
