| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1173 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | Wire To Board Crimp Style Connectors | Cross Part: | JST ZH Connector Series |
|---|---|---|---|
| Type: | Disconnectable Type Crimp Style, Compact Type | PC Board Mounting Direction: | Top Entry, Side Entry |
| Color: | White | Poles: | 2-15 |

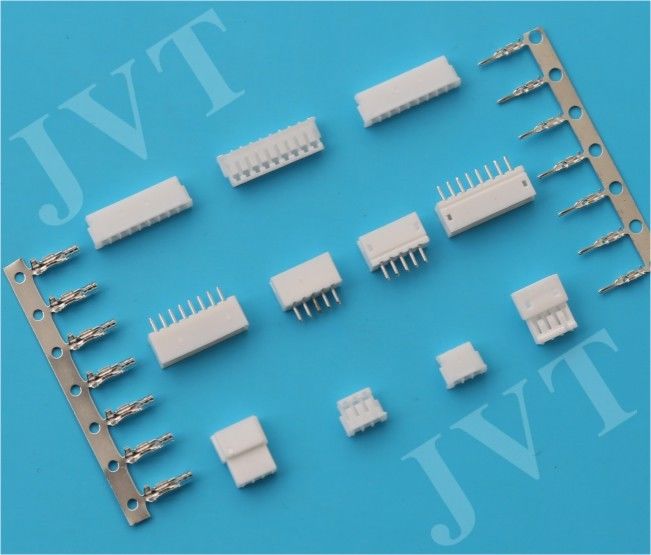

Brass Tin Plated ZH 1.5mm Pitch Wire to Board Connector for PCB / Automotive
ZH 1.5mm Pitch for Wire to Board female housing Connector of Making in Brass and Tin plated,cross of JST B2B-ZR
Housing lances
The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
Fully shrouded header
The same shrouded header can be used for the ZR insulation displacement connector.
Material Specification :
|
Terminal: Phosphor Bronze ,Tin plated Housing: Nylon 66 UL94V-0 Wafer: Nylon 66 UL94V-0 PIN: Brass ,Tin plated |
Standardized Specification:
|
Pitch |
1.5mm |
|
No.of contact |
2-15 |
|
Applicable wire |
AWG#26 - 30 |
|
Rating Voltage |
100V AC/DC |
|
Rating Current |
1A AC/DC |
|
Voltage Withstand |
800V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
