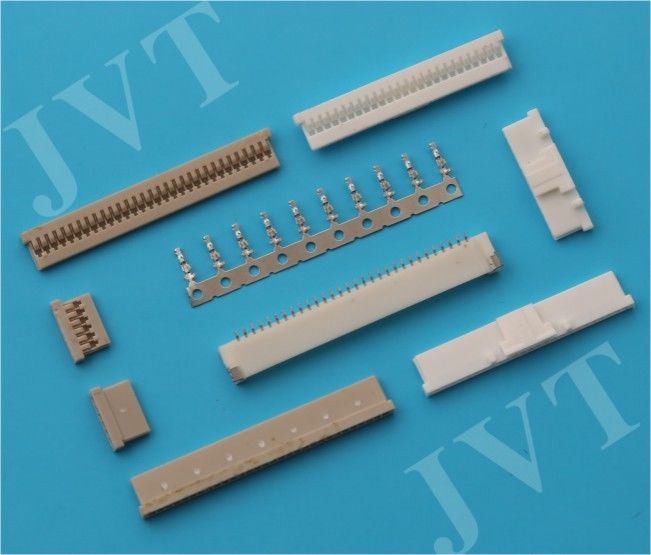

DF14 1.25mm Pitch Wire to Board Connector with 2 Pressure Lock Slope 1A AC/DC

DF14 1.25mm Pitch Wire to Board Connector with 2 Pressure Lock Slope 1A AC/DC

DF14 1.25mm Pitch Wire to Board Connector with 2 Pressure Lock Slope 1A AC/DC

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1225

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 1.25mm Type: With Lock Or No Lock
Applicable Wire: 28 - 32 # AWG Current Rating: 1A AC / DC

DF14 1.25mm Pitch Wire to Board Connector with 2 Pressure Lock Slope 1A AC/DC



DF14 1.25mm Pitch for Wire to Board Connector with Lock or No Lock





Material Specification :



Terminal: Phosphor Bronze ,Tin plated or Gold plated



Housing: PA66,UL94V-0



Wafer: Nylon 66 UL94V-0



PIN: Brass ,Tin plated





Standardized Specification:



Scale

1.25mm

Cables

 2-30

Applicable wire

AWG#28-32

Rating Voltage

150V AC/DC

Rating Current

1A AC/DC

Withstand voltage

500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

30MΩ Max.





Favorable Features:



 Socket is equipped with two pressure lock slope, thus it can be firmly fixed to the joint.This greatly

 reduces the conductivity due to vibration or improper handling of accidental mismatch.

 Shake proof , strong stability.

 Simple cable inserting and reliable cable keeping.

 Environmental products comply with RoHS directive protection





Application Consumer:



 Game Player



 LCD panel and TV panels



 Photocopier



 Control Panel



 Aarm System



 Set-top Box





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
