Place of Origin: | China |
Brand Name: | JVT |
Certification: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT1257HNO-XXL |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
Pitch: | 1.25mm | Type: | GHR |
---|---|---|---|
Poles: | 2 - 18 | Applicable Wire: | 26 - 30# AWG |
Cuurenting Rating: | 1 A AC / DC | Voltage Rating: | 150V AC / DC |

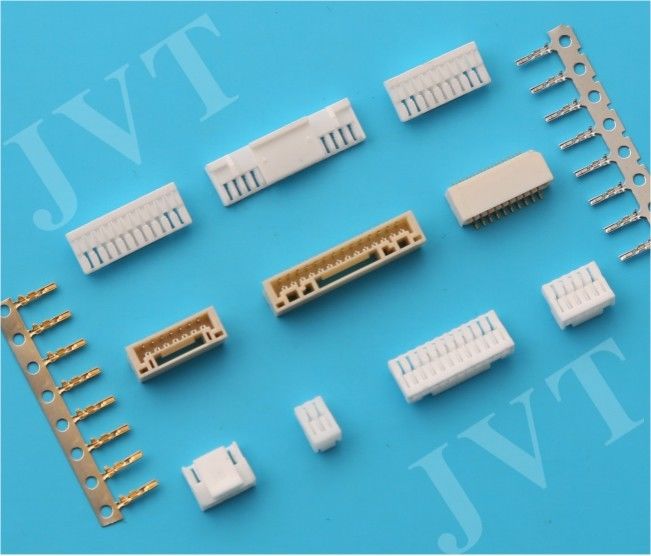

AWG# 26-30 Circuit Board Pin Connectors 1.25mm Pitch with 10MΩ Max Contact Resistance
GHR 1.25mm Pitch for Wire to Board Connector with Application AWG 26 - 30
Material Specification :
Terminal: |
Phosphor Bronze ,Tin plated |
Housing: |
Nylon66 UL94V-0 |
Wafer: |
PA9T UL94V-0 |
PIN: |
Phosphor Bronze ,Tin plated |
Standardized Specification:
Pitch: 1.25mm Poles: 2-18
Applicable wire: AWG# 26-30Voltage rating: 150V AC/DC
Current rating: 1A AC/DC Withstand voltage: 500V AC/minute
Working temperature: -25°C to +85°C Insulation resistance: 5000MΩ Min
Contact resistance: 10MΩ Max.
Favorable Features:
High density design can effectively save space. |
Shake proof , strong stability. |
Simple cable inserting and reliable cable keeping. |
Environmental products comply with RoHS directive protection |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
