SGS / UL / ROHS Electronic Cable Connectors , AMP Wire to Board Crimp Style Connectors

SGS / UL / ROHS Electronic Cable Connectors , AMP  Wire to Board Crimp Style Connectors

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2005

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.0mm Equivalent: AMP
Applicable Wire: 22 - 28# AWG Poles: 2 - 15#

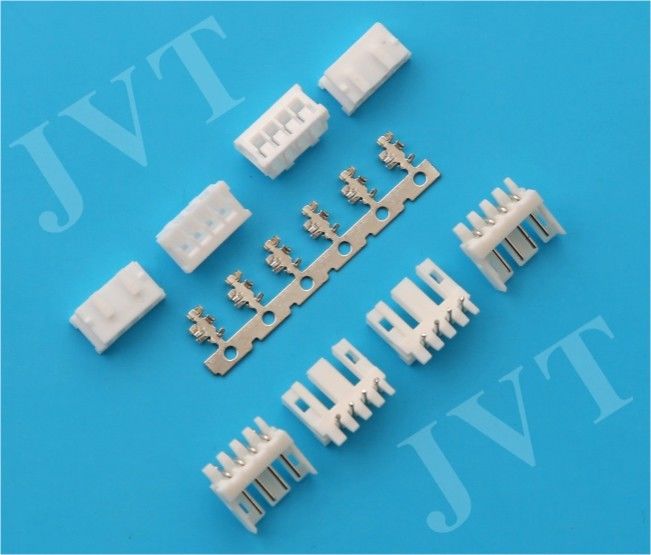

SGS / UL / ROHS Electronic Cable Connectors , AMP  Wire to Board Crimp Style Connectors


Material Specification :


Terminal                                 Phosphor Bronze ,Tin plated or Gold plated


Housing                                   PA66,UL94V-0


Wafer                                      Nylon 66 UL94V-0


PIN                                          Brass,Gold /Tin plated



2.0mm Pitch for Wire to Board Connector Equivalent with AMP Style



Standardized Specification:






Applicable wire

AWG # 22 - 28

Rating Voltage

250V AC/DC

Rating Current


Withstand voltage

800V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.
