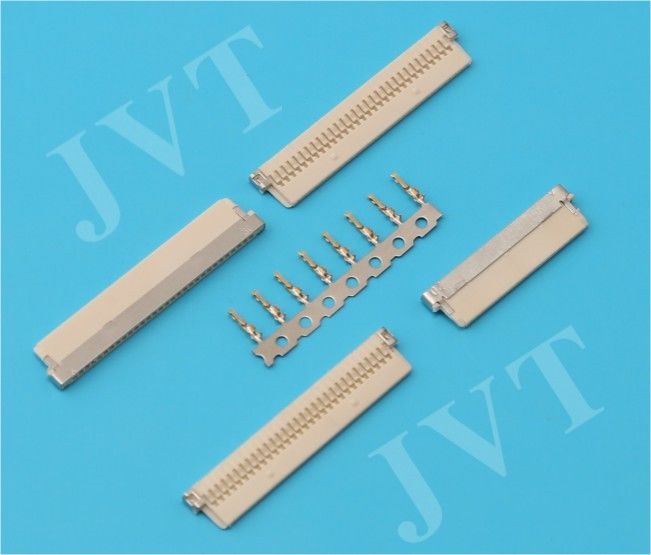

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1019

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Series: DF19 Pitch: 1.0mm
Color Type: White Current Rating: 1A AC / DC

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles



JVT LVDS connectors housing and terminal ,1.0mm pitch ,20 poles ,Nylon 66 UL94V-0​



Payment &shipping Terms :
Minimum Order Quantity: 1000 PCS
Shipping terms:By express or by sea
Delivery Time :7-10 working days
Packaging Details :PE bag packing +outer carton







Specifications :



Pitch: 1.0mm

Poles: 20,30

Applicable wire: AWG#28-32

Voltage rating: 125V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
