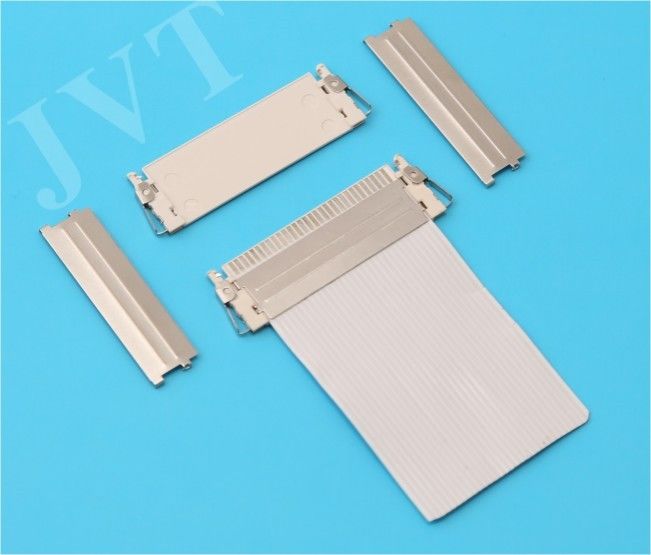

1A AC/DC FFC 1.0mm Pitch LVDS Connector with PA46 UL94V-0 Material Housing

1A AC/DC FFC 1.0mm Pitch LVDS Connector with PA46 UL94V-0 Material Housing

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1060

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Type Of Application: FFC Pitch: 1.0mm
Color Type: White AWG Wire: 28 - 32 #

1A AC/DC FFC 1.0mm Pitch LVDS Connector with PA46 UL94V-0 Material Housing



FFC 1.0mm Pitch LVDS Connector housing  Applied with PA46 UL94V-0 Material





Specifications :



Pitch: 1.0mm

Applicable wire: AWG#28-32

Voltage rating: 500V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.





Application:



Portable audio devices, Smart Phones and Mobile Devices, GPS, Smart phones, Tablet PCs
Data/Communications: Copiers
