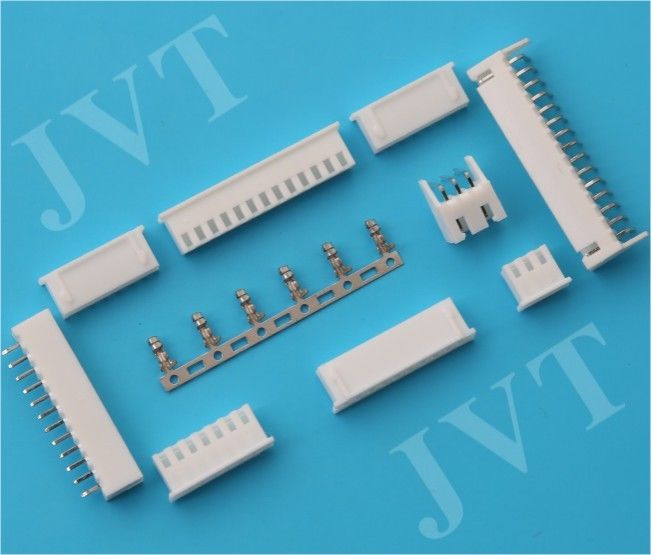

XH 2.5 Pitch PCB wire to board connector Disconnectable Crimp with Brass Contact Material

XH 2.5 Pitch PCB wire to board connector Disconnectable Crimp with Brass Contact Material

XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2001

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag/Tray/Tape&Reel
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Equivalent: JST Pitch: 2.5mm
No.of Rows: 1 No.of Contact: 2-16
Contact Material: Brass Contact Plating: Tin Plated

XH 2.5 Pitch PCB wire to board connector Disconnectable Crimp with Brass Contact Material



Product Details :

Series :XH Connector,terminal block connectors
equivalent JST  XHP-2 ,SXH-001T-P0.6,B3B-XH-A
Category :wire to board crimp style connector

Type Disconnectable type
          Crimp style ,Shrouded header type
PCB board mounting direction:top entry ,side entry







Specifications :

Voltage rating: 250V AC/DC
Current rating: 10A AC/DC
Withstanding voltage: 1500V AC/minute
Insulation resistance: 1,000MΩ minimum
Temperature range:  -25℃ to +85℃
Contact resistance:  10MΩ maximum
Applicable wire : AWG#22-30





Payment &shipping Terms :
FOB port: Shenzhen
Shipping terms: By express or by sea
Delivery Time : 7-10 working days
Packaging Details : PE bag/Tray/Tape&Reel



Drawing



XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material



XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material



XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material



XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material





XH 2.5 Pitch PCB wire to  board connector Disconnectable Crimp with Brass Contact Material





Our advantage





Favorable unit price



Strict quality control



Shortest lead time



Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



Accelerated equipments:10 automated injection molding machines
                                        20 automated pin - setting machines
                                       6 high precision stamping machines






Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
