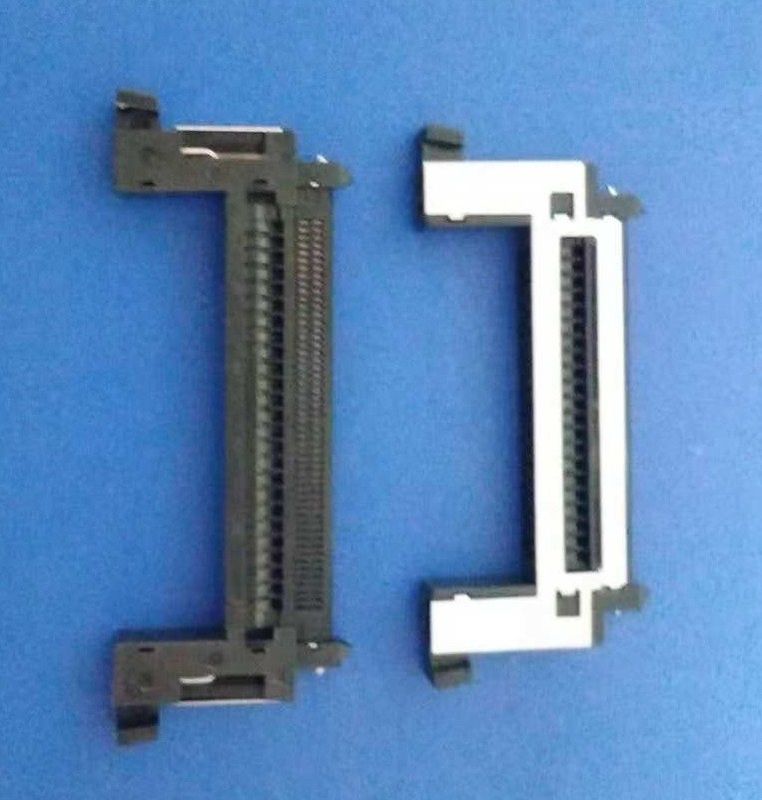

Mobile Devices / GPS Lvds Cable Connector Wire To Board 1A AC / DC Current Rating

Mobile Devices / GPS Lvds Cable Connector Wire To Board 1A AC / DC Current Rating

Mobile Devices / GPS Lvds Cable Connector Wire To Board 1A AC / DC Current Rating

Product Details:

Place of Origin:	China
Brand Name:	JVT
Certification:	ISO9001/SGS/UL/ROHS/Reach
Model Number:	umber: JVT1030

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	Negotiation
Packaging Details:	PE bag packing +outer carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union
Supply Ability:	300000 per month

Contact Now

Detailed Product Description

Pitch:

1.0mm

Current Rating:

1A AC / DC

Poles:

41,51

Applicable Wire:

AWG 28 32

Highlight:

lvds cable connector

,

lvds display connector

Mobile Devices / GPS Lvds Cable Connector Wire To Board 1A AC / DC Current Rating

Material Specification :

Terminal: Phos. Bronze

Housing: Nylon46 UL94V-0

Standardized Specification:

Pitch: 1.0mm

Poles: 41,51

Applicable wire: AWG#28-32

Voltage rating: 50V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Tag:

lvds cable connector,

lvds display connector
