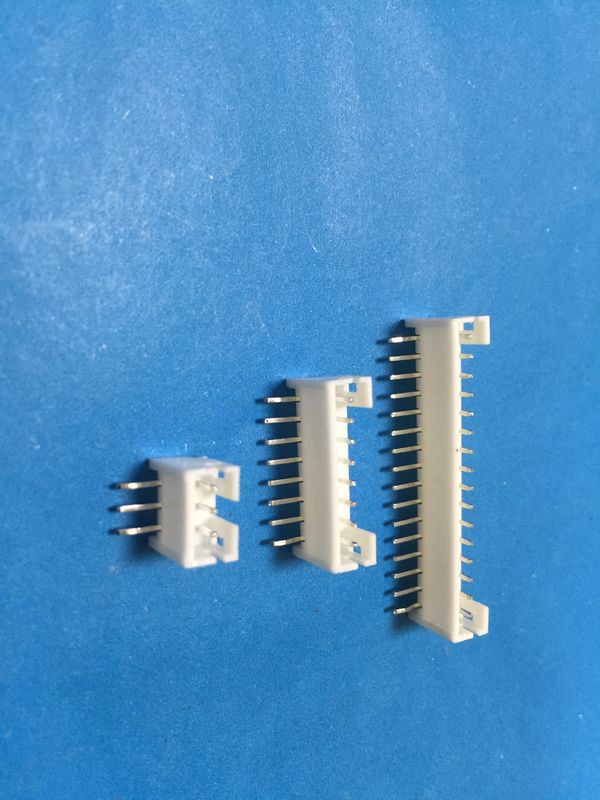

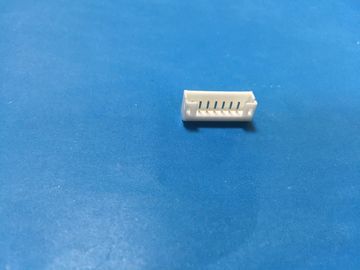

Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type

    • Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type
    • Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type
    • Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type
  • Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT1124-series

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000PCS
    Price: Negotiation
    Packaging Details: Tape&Reel
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Pitch: 2.0mm Pole: 2-20
    Color: White Type: DIP



    Single Row Crimp Style Wire To Board Connector 2mm Pitch Featured With Disconnectable Type



    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.



    Specification ​:









    Part no JVT1146WNO-XXSNX-D
    Poles 2-20
    Pitch 2.0mm
    Finish Tin-plated
    Current rating 3A AC/ DC
    Voltage rating 250V AC,DC
    Insulation resistance 1000MΩmin
    Temperature range -25°C~+85C°
    Color White
    Package 2000pcs/bag





    Payment Details :



    Payment Terms :T/T or Western Union



    Minimum Order :2000 Pieces



    Samples :free





    Competitive Advantages :

    ♦ Connectors manufacturer with over 15 years experience

    ♦ Complete Product range
    ♦ Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS
